Reassembly [11/2020 - 11/2021]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Clean the front fender sub-assembly LH surface:

      1. When reusing the front fender sub-assembly LH, remove remaining double-sided tape from the front fender sub-assembly LH.

      2. Using a heat light, heat the front fender sub-assembly LH surface.

      Standard Value

      Part	Temperature
      Front Fender Sub-assembly LH	40 to 60°C (104 to 140°F)
      Front Fender Seal LH	20 to 30°C (68 to 86°F)

      WARNING:

      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

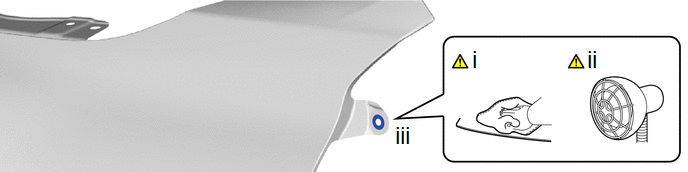

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the front fender sub-assembly LH excessively.

      3. Remove any remaining double-sided tape from the front fender sub-assembly LH and wipe off any tape adhesive residue with cleaner.

      4. Clean the installation area surface.

      NOTE:

      • Installing the front fender seal LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Also, clean a new front fender sub-assembly LH surface.
   2. Using a heat light, heat the front fender sub-assembly LH and a new front fender seal LH.
      NOTE:

      Do not heat the front fender sub-assembly LH and a new front fender seal LH excessively.

   3. Install the front fender seal LH in the position shown in the illustration.
      NOTE:

      The application strength of the front fender seal LH will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

      HINT:

      Apply pressure so that it does not lift up from the front fender sub-assembly LH.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction		Bolt
   	Fold Back	-	-

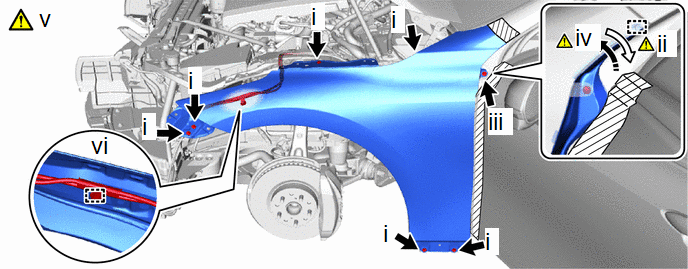

   1. Temporarily install the front fender sub-assembly LH with 6 bolts.
   2. Detach the guide and fold back the front fender side panel protector LH.
   3. Install the bolt.
   4. Attach the guide and install the front fender side panel protector LH.
   5. Tighten the 6 bolts.
   6. Attach the clamp.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

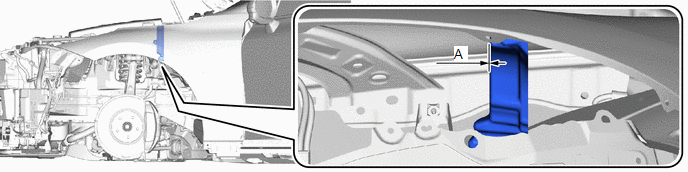

   Standard Measurement

   Area	Measurement	Area	Measurement
   A	-10.0 to 10.0 mm (-0.394 to 0.394 in.)	-	-

Refer to INSTALLATION [11/2020 - ]
