Parts Location [11/2020 - 12/2023]: Illustration

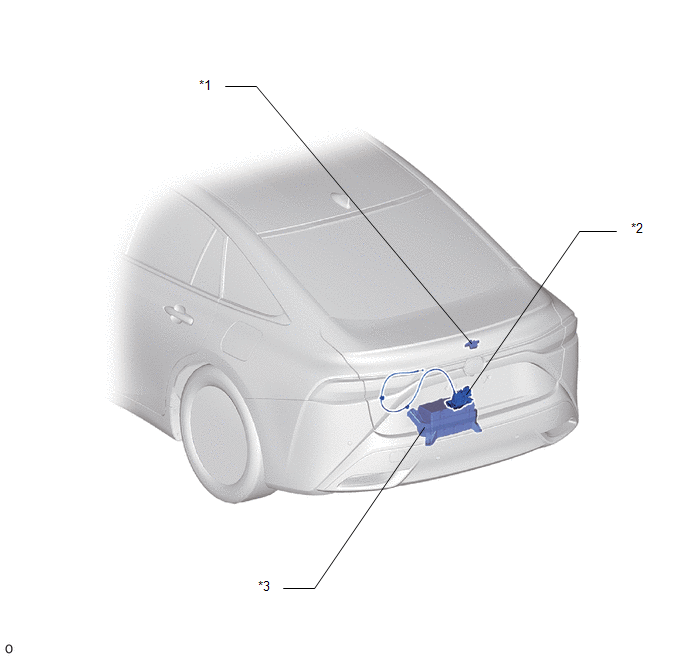

Fig 1: Luggage Compartment Door Opener System Replacement Components (1 Of 2) [11/2020 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE ELECTRICAL KEY SWITCH	*2	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
*3	LUGGAGE ROOM RELAY BLOCK ASSEMBLY - TRUNK OPEN RELAY (TRUNK OPN) - TRUNK OPEN FUSE	-	-

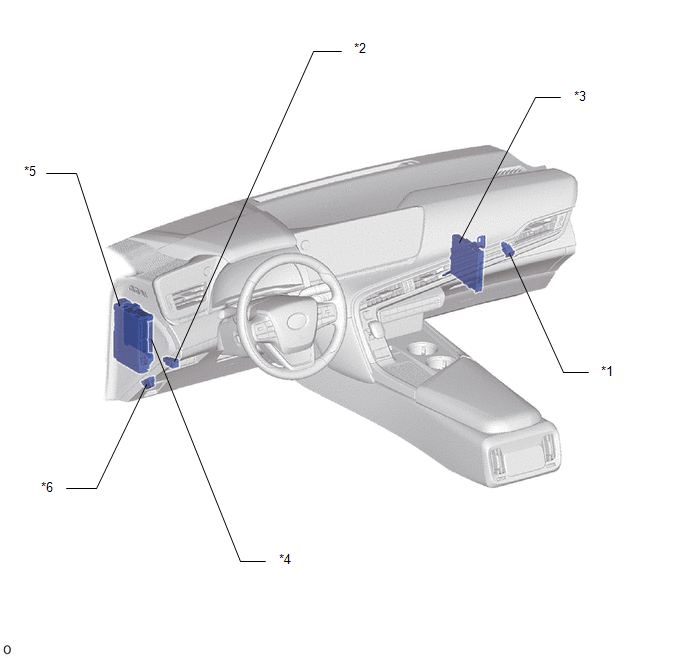

Fig 1: Luggage Compartment Door Opener System Replacement Components (2 Of 2) [11/2020 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY	*2	LUGGAGE DOOR OPENING SWITCH ASSEMBLY
*3	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	DRIVER SIDE JUNCTION BLOCK ASSEMBLY	*6	DLC3
