COMPONENTS (REASSEMBLY)

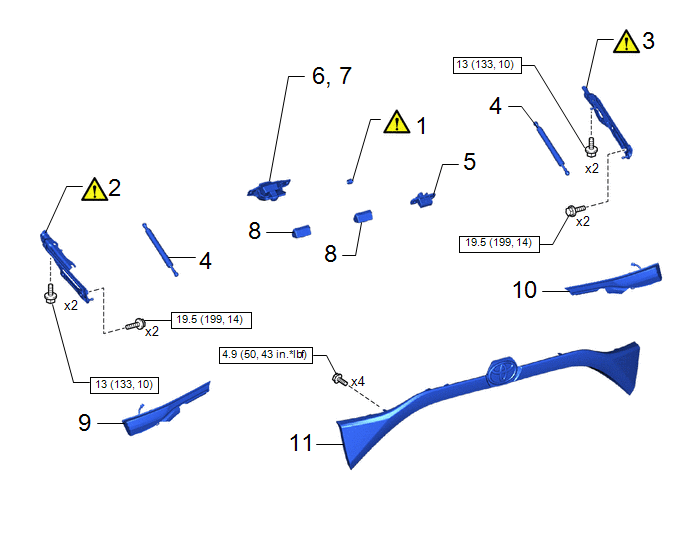

Fig 1: Luggage Compartment Door Reassembly Components With Torque Specifications [11/2020 - 12/2023] (1 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | LUGGAGE COMPARTMENT DOOR CUSHION | 64459 | See step 1 | - | - |
| 2 | LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY LH | 64520 | See step 2 | - | - |
| 3 | LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY RH | 64510 | See step 3 | - | - |
| 4 | LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY | 64530A | - | - | - |
| 5 | LUGGAGE ELECTRICAL KEY SWITCH | 84945A | - | - | - |
| 6 | TELEVISION AND INNER REAR VIEW MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror) | 867A0 | - | - | - |
| 7 | REAR TELEVISION CAMERA ASSEMBLY (w/o Digital Inner Mirror) | 86790D | - | - | - |
| 8 | LICENSE PLATE LIGHT ASSEMBLY | 81270 | - | - | - |
| 9 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY | 76801A | - | - | - |
| 10 | REAR LIGHT ASSEMBLY LH | 81590A | - | - | - |
| 11 | REAR LIGHT ASSEMBLY RH | 81580D | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

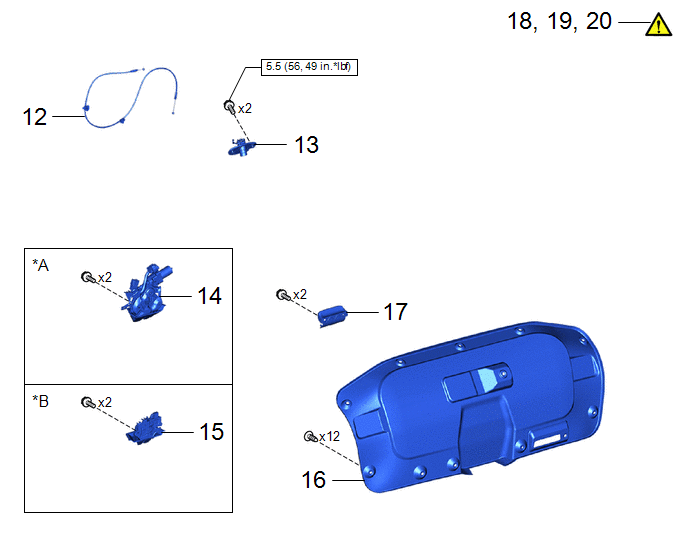

Fig 2: Luggage Compartment Door Reassembly Components With Torque Specifications [11/2020 - 12/2023] (2 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 12 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY | 76801A | - | - | - |
| 13 | LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY | - | - | - | - |
| 14 | LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY | 69560A | - | - | - |
| 15 | LUGGAGE DOOR CLOSER ASSEMBLY | 64650 | - | - | - |
| 16 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY | 64610 | - | - | - |
| 17 | LUGGAGE COMPARTMENT DOOR COVER | 64719A | - | - | - |
| 18 | LUGGAGE COMPARTMENT DOOR ASSIST GRIP | 74649 | - | - | - |
| 19 | INSPECT EASY CLOSER (w/ Easy Closer) | - | - | - | - |
| 20 | CHECK DOOR LOCK OPERATION | - | - | - | - |
| *A | w/ Easy Closer | *B | w/o Easy Closer |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
