Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

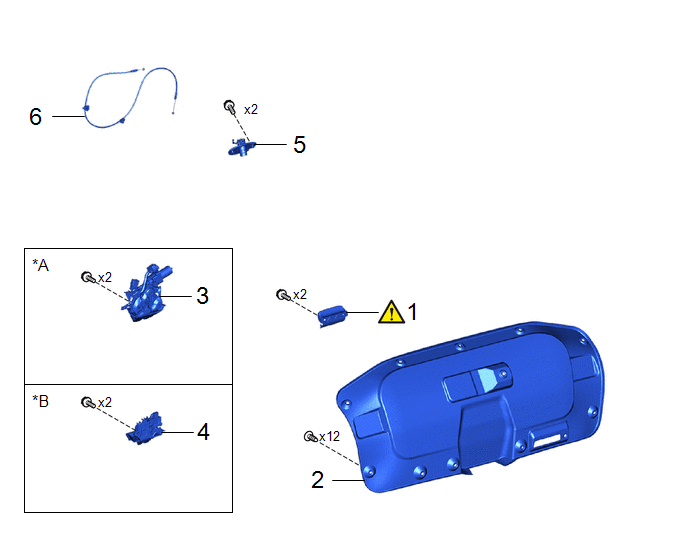

Fig 1: Luggage Compartment Door Disassembly Components [11/2020 - 12/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	LUGGAGE COMPARTMENT DOOR ASSIST GRIP	74649	See step 1	-	-
2	LUGGAGE COMPARTMENT DOOR COVER	64719A	-	-	-
3	LUGGAGE DOOR CLOSER ASSEMBLY	64650	-	-	-
4	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY	64610	-	-	-
5	LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY	69560A	-	-	-
6	LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY	-	-	-	-

w/ Easy Closer

w/o Easy Closer

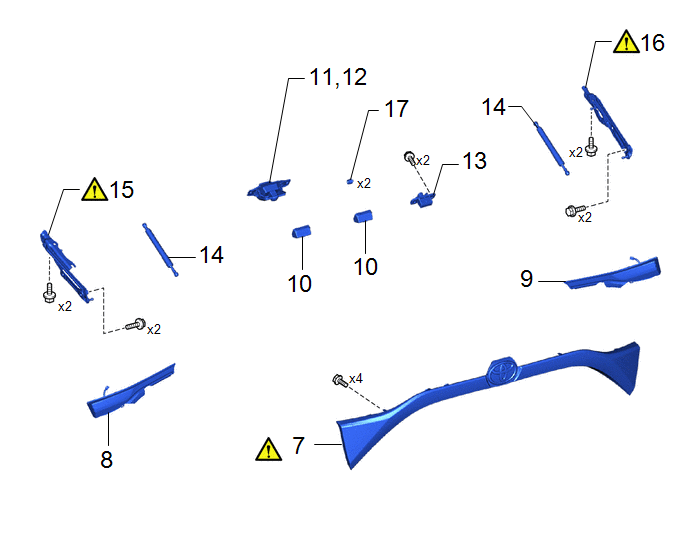

Fig 2: Luggage Compartment Door Disassembly Components [11/2020 - 12/2022] (2 Of 2)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801A	See step 7	-	-
8	REAR LIGHT ASSEMBLY LH	81590A	-	-	-
9	REAR LIGHT ASSEMBLY RH	81580D	-	-	-
10	LICENSE PLATE LIGHT ASSEMBLY	81270	-	-	-
11	TELEVISION AND INNER REAR VIEW MIRROR CAMERA ASSEMBLY	867A0	-	-	-
12	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
13	LUGGAGE ELECTRICAL KEY SWITCH	84945A	-	-	-
14	LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY	64530A	-	-	-
15	LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY LH	64520	See step 16	-	-
16	LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY RH	64510	See step 15	-	-
17	LUGGAGE COMPARTMENT DOOR CUSHION	64459	-	-	-

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during luggage compartment door disassembly/reassembly are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Rear television camera assembly (Including removal and installation)	Parking assist monitor system initialization Rear television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	Refer to CALIBRATION [11/2020 - 12/2022]
	Rear television camera view adjustment Rear television camera view adjustment (for Rear camera detection system)	Panoramic view monitor system	Refer to CALIBRATION [11/2020 - 12/2022]
Front television camera assembly, front bumper assembly or radiator grille Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts Rear television camera view adjustment (for Rear camera detection system)	Panoramic view monitor system	Refer to CALIBRATION [11/2020 - 12/2022]
