COMPONENTS (REMOVAL)

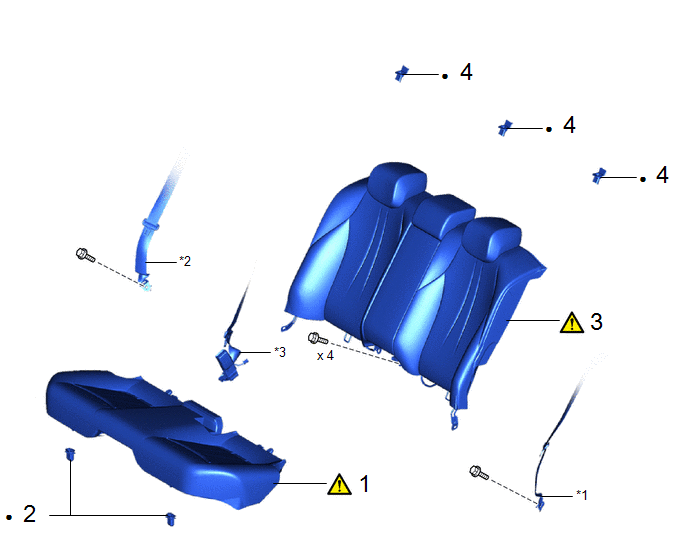

Fig 1: Rear Seatback Heater Removal Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step 1	-	-
2	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
3	BENCH TYPE REAR SEATBACK ASSEMBLY	-	See step 3	-	-
4	REAR SEATBACK HOLDER	71398A	-	-	-

*1	REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)	*2	REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)
*3	REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (FLOOR ANCHOR)	-	-
•	Non-reusable part	-	-

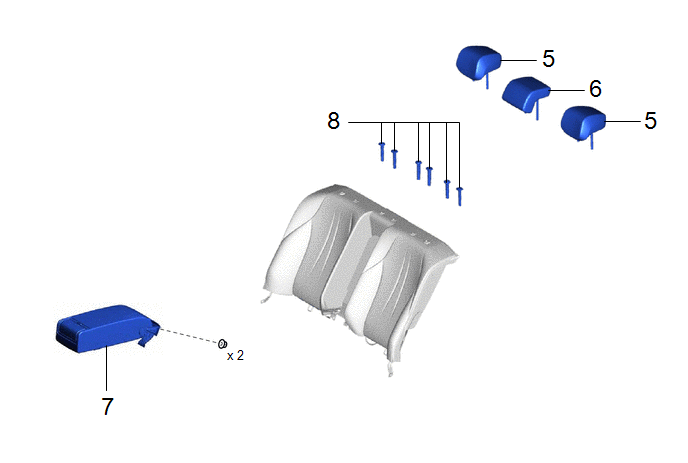

Fig 2: Rear Seatback Heater Removal Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-
6	REAR CENTER SEAT HEADREST ASSEMBLY	71960B	-	-	-
7	REAR CENTER SEAT ARMREST ASSEMBLY	72830	-	-	-
8	HEADREST SUPPORT	-	-	-	-

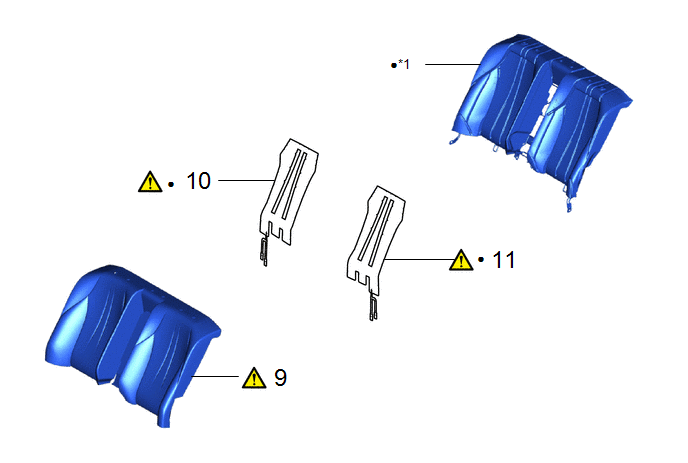

Fig 3: Rear Seatback Heater Removal Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9	BENCH TYPE REAR SEATBACK COVER	71077B	See step 9	-	-
10	SEATBACK HEATER ASSEMBLY RH	87510R	See step 10	-	-
11	SEATBACK HEATER ASSEMBLY LH	87510S	See step 10	-	-

*1	REAR SEATBACK PAD SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

WARNING:

HINT:

Move both front seats to the frontmost position and fold them forward.
