COMPONENTS (INSTALLATION)

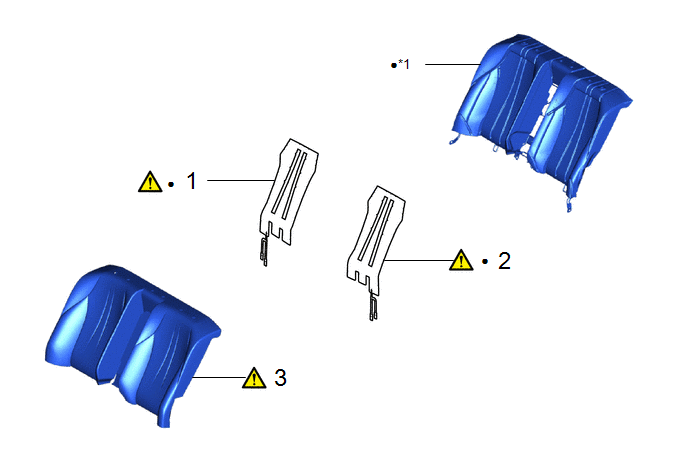

Fig 1: Rear Seatback Heater Installation Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	SEATBACK HEATER ASSEMBLY RH	87510R	See step  1	-	-
2	SEATBACK HEATER ASSEMBLY LH	87510S	See step  1	-	-
3	BENCH TYPE REAR SEATBACK COVER	71077B	See step  3	-	-

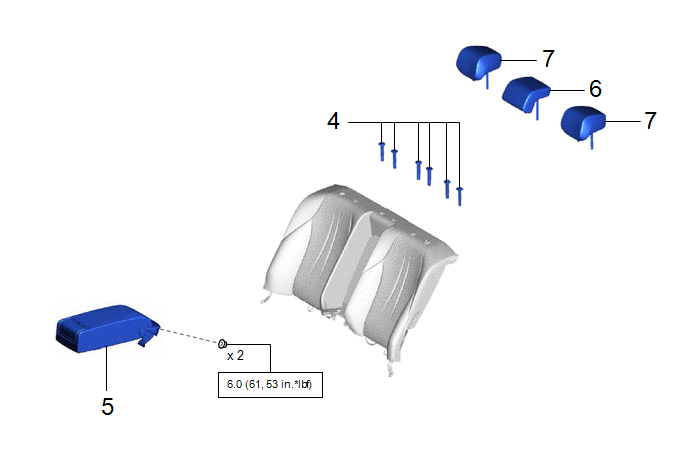

Fig 2: Rear Seatback Heater Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4	HEADREST SUPPORT	-	-	-	-
5	REAR CENTER SEAT ARMREST ASSEMBLY	72830	-	-	-
6	REAR CENTER SEAT HEADREST ASSEMBLY	71960B	-	-	-
7	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

-

-

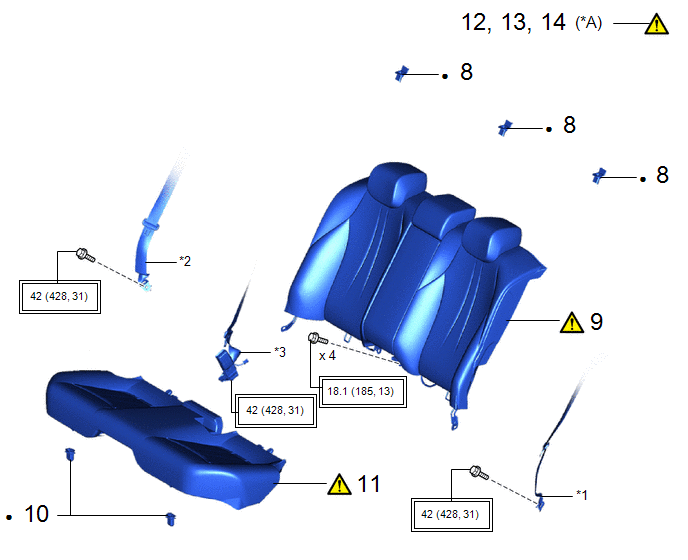

Fig 3: Rear Seatback Heater Installation Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8	REAR SEATBACK HOLDER	71398A	-	-	-
9	BENCH TYPE REAR SEATBACK ASSEMBLY	-	See step  9	-	-
10	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
11	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step  11	-	-
12	INSPECT SEAT BELT WARNING SYSTEM	-	See step  12	-	-
13	INSPECT SEAT HEATER SYSTEM	-	See step  13	-	-
14	INSPECT CLIMATE CONTROL SEAT SYSTEM	-	See step  14	-	-

*A	w/ Climate Control Seat System	-	-
*1	REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)	*2	REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)
*3	REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (FLOOR ANCHOR)	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

WARNING:

• Wear protective gloves. Sharp areas on the parts may injure your hands.
• There is risk of injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Move both front seats to the frontmost position and fold them forward.
