Caution / Notice / Hint

COMPONENTS (REMOVAL)

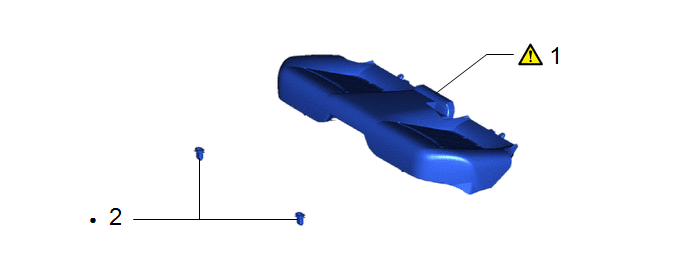

Fig 1: Rear Seat Cushion Heater Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step 1	-	-
2	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

•

Non-reusable part

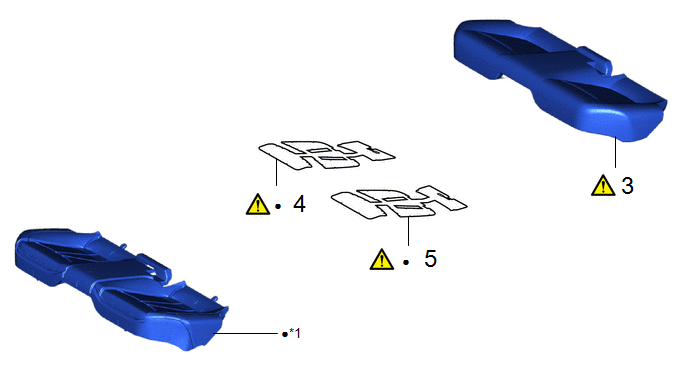

Fig 2: Rear Seat Cushion Heater Removal Components (2 Of 2)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3	BENCH TYPE REAR SEAT CUSHION COVER	71075B	See step 3	-	-
4	SEAT CUSHION HEATER ASSEMBLY RH	87510P	See step 4	-	-
5	SEAT CUSHION HEATER ASSEMBLY LH	87510Q	See step 4	-	-

*1	REAR SEAT CUSHION PAD SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

HINT:

Move both front seats to the frontmost position and fold them forward.
