Inspection [11/2020 - ]: Procedure
- INSPECT SEAT CUSHION HEATER ASSEMBLY RH
- Measure the resistance according to the value(s) in the table below.

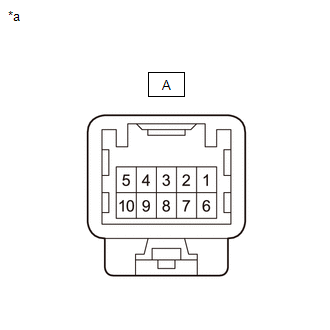

*a Component without harness connected
(Seat Cushion Heater Assembly RH)Standard Resistance
Tester Connection Condition Specified Condition Result A-2 - A-3 Always 20°C (68°F) 11.9 to 12.3 kΩ kΩ A-4 - A-5 Always 20°C (68°F) Below 1 Ω Ω A-4 - A-7 Always 20°C (68°F) 3.22 to 3.94 Ω Ω A-5 - A-7 Always 20°C (68°F) 3.22 to 3.94 Ω Ω If the result is not as specified, replace the seat cushion heater assembly RH.
- Measure the resistance according to the value(s) in the table below.
- INSPECT SEAT CUSHION HEATER ASSEMBLY LH
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Seat Cushion Heater Assembly LH)Standard Resistance
Tester Connection Condition Specified Condition Result A-2 - A-3 Always 20°C (68°F) 11.9 to 12.3 kΩ kΩ A-4 - A-5 Always 20°C (68°F) Below 1 Ω Ω A-4 - A-7 Always 20°C (68°F) 3.22 to 3.94 Ω Ω A-5 - A-7 Always 20°C (68°F) 3.22 to 3.94 Ω Ω If the result is not as specified, replace the seat cushion heater assembly LH.
- Measure the resistance according to the value(s) in the table below.
