Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautioary notices concerning the SRS airbag system before servicing.

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2020 - 12/2022]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [11/2021 - 12/2022]

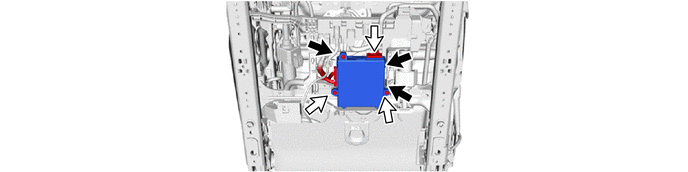

  3. REMOVE POSITION CONTROL ECU ASSEMBLY LH
    1. GTY1018011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Screw
