Caution / Notice / Hint

COMPONENTS (INSTALLATION)

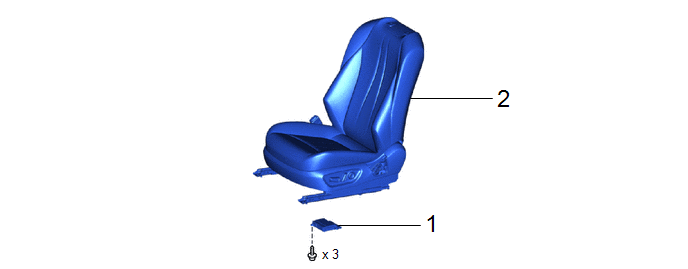

Fig 1: Power Seat Control ECU Installation Components
GTY1018204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 POSITION CONTROL ECU ASSEMBLY LH 89710D - - -
2 FRONT SEAT ASSEMBLY LH - - - -
WARNING:
  • Wear protective gloves. Sharp areas on the parts may injure your hands.
  • There is risk of injury.
GTY848043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
