Caution / Notice / Hint

COMPONENTS (INSTALLATION)

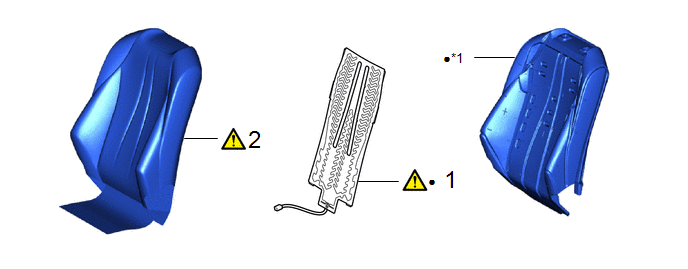

Fig 1: Front Seatback Heater Installation Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FRONT SEATBACK HEATER ASSEMBLY LH	87510N	See step  1	-	-
2	SEPARATE TYPE FRONT SEATBACK COVER LH	71074S	See step  2	-	-

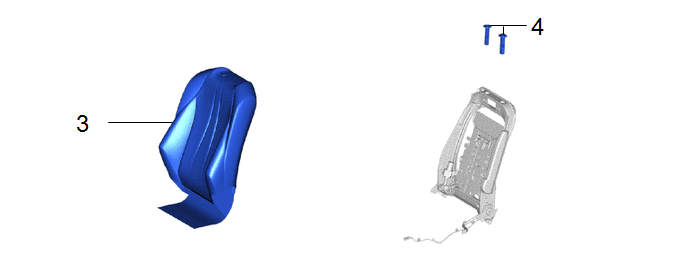

Fig 2: Front Seatback Heater Installation Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD LH	-	-	-	-
4	FRONT SEAT HEADREST SUPPORT	71931	-	-	-

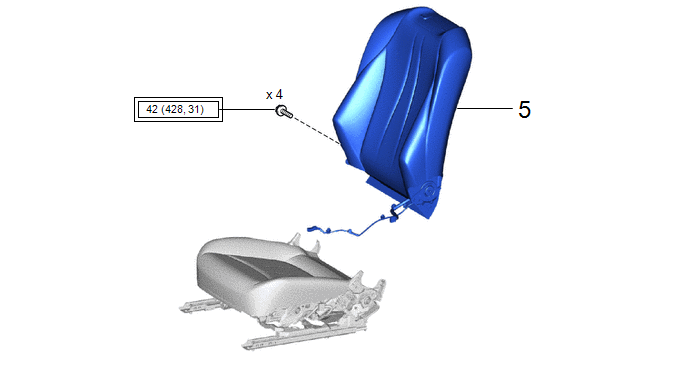

Fig 3: Front Seatback Heater Installation Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5	FRONT SEATBACK ASSEMBLY LH	-	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

-

-

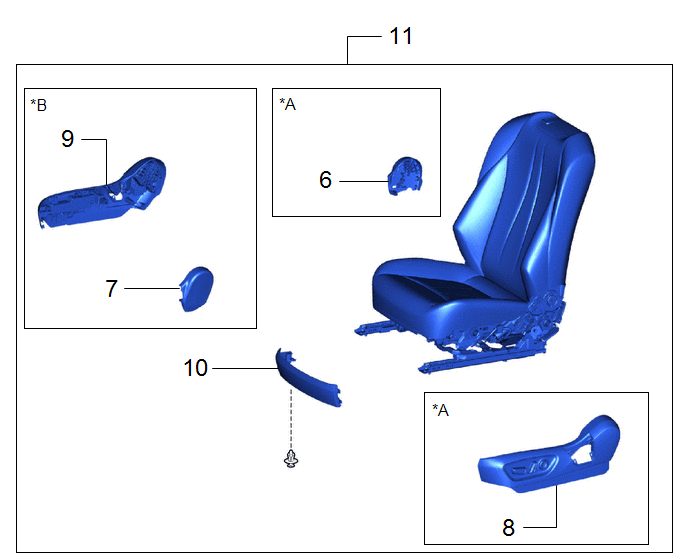

Fig 4: Front Seatback Heater Installation Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6	FRONT INNER SEAT CUSHION SHIELD LH	71862	-	-	-
7	FRONT INNER SEAT CUSHION SHIELD RH	71861	-	-	-
8	FRONT SEAT CUSHION SHIELD LH	71812D	-	-	-
9	FRONT SEAT CUSHION SHIELD RH	71811D	-	-	-
10	FRONT SEAT FRONT CUSHION SHIELD LH	71868N	-	-	-
11	FRONT SEAT ASSEMBLY LH	-	-	-	-

WARNING:

• Wear protective gloves. Sharp areas on the parts may injure your hands
• There is risk of injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.
