COMPONENTS (INSTALLATION)

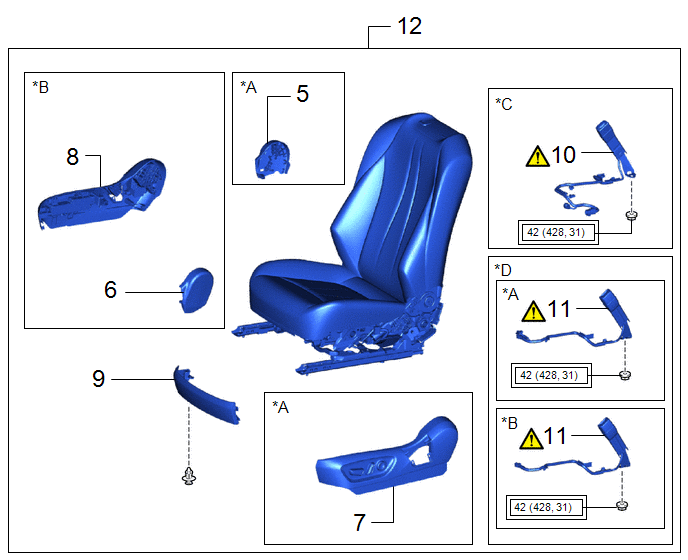

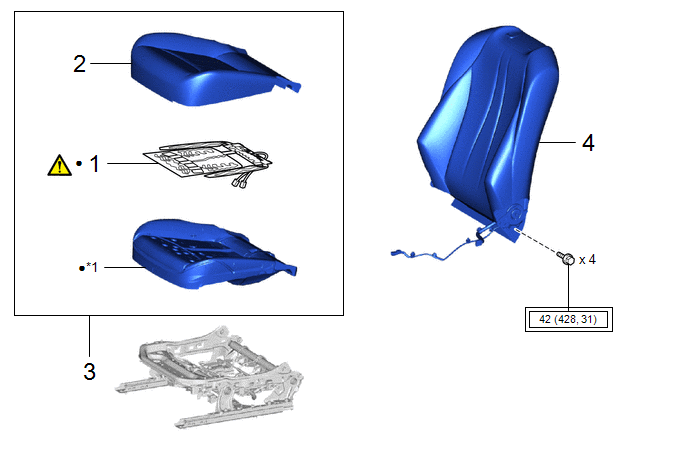

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT SEAT CUSHION HEATER ASSEMBLY LH | 87510C | See step 1 | - | - |
| 2 | SEPARATE TYPE FRONT SEAT CUSHION COVER LH | 71072 | - | - | - |
| 3 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD LH | - | - | - | - |
| 4 | FRONT SEATBACK ASSEMBLY LH | - | - | - | - |
| *1 | SEPARATE TYPE FRONT SEAT CUSHION PAD LH | - | - |
| • | Non-reusable part | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | FRONT INNER SEAT CUSHION SHIELD LH | 71862 | - | - | - |
| 6 | FRONT INNER SEAT CUSHION SHIELD RH | 71861 | - | - | - |
| 7 | FRONT SEAT CUSHION SHIELD LH | 71812D | - | - | - |
| 8 | FRONT SEAT CUSHION SHIELD RH | 71811D | - | - | - |
| 9 | FRONT SEAT CUSHION SHIELD FRONT LH | 71868N | - | - | - |
| 10 | FRONT SEAT INNER BELT ASSEMBLY LH | 73240 | See step 10 | - | - |
| 11 | FRONT SEAT INNER BELT ASSEMBLY RH | 73230 | See step 11 | - | - |
| 12 | FRONT SEAT ASSEMBLY LH | - | - | - | - |
| *A | for 8 Way Seat Type | *B | for 4 Way Seat Type |
| *C | for Driver Side | *D | for Driver Side |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
WARNING:
- Wear protective gloves. Sharp areas on the parts may injure your hands.
- There is risk of injury.
HINT:
- Use the same procedure for the RH and LH side.
- The following procedure is for the LH side.
