Removal [11/2020 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 3 [12/2023 - ]
  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 4 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 4 [12/2023 - ]
  3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 6 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]

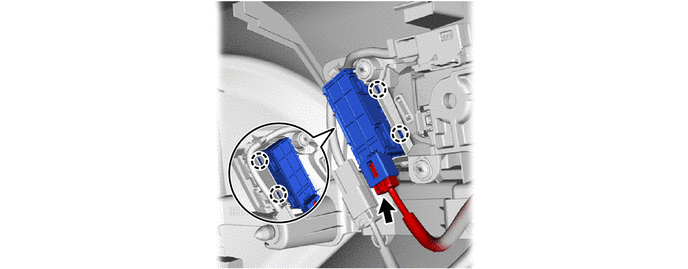

  4. REMOVE SEAT MEMORY SWITCH LH
    1. GTY1017963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
