COMPONENTS (REMOVAL)

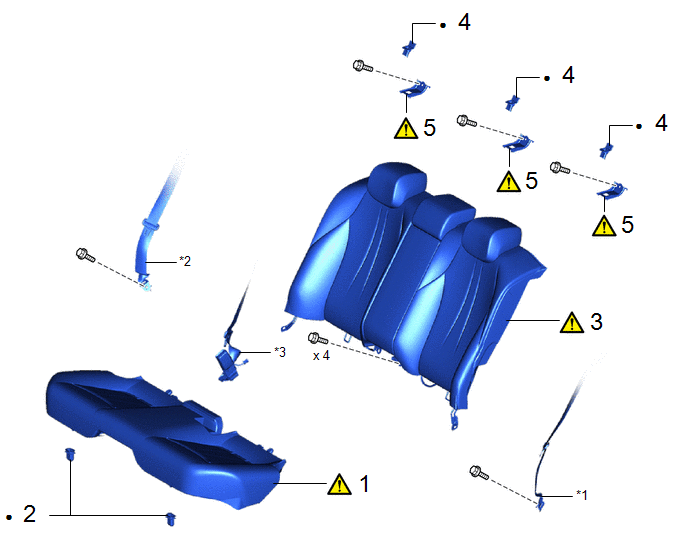

Fig 1: Rear Seat Assembly Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step 1	-	-
2	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
3	BENCH TYPE REAR SEATBACK ASSEMBLY	-	See step 3	-	-
4	REAR SEATBACK HOLDER	71398A	-	-	-
5	REAR NO. 1 SEATBACK SET BRACKET	71891	See step 5	-	-

*1	REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)	*2	REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)
*3	REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (FLOOR ANCHOR)	-	-
•	Non-reusable part	-	-

WARNING:

HINT:

Move both front seats to the frontmost position and fold them forward.
