COMPONENTS (REASSEMBLY)

Fig 1: Rear Seat Assembly Reassembly Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

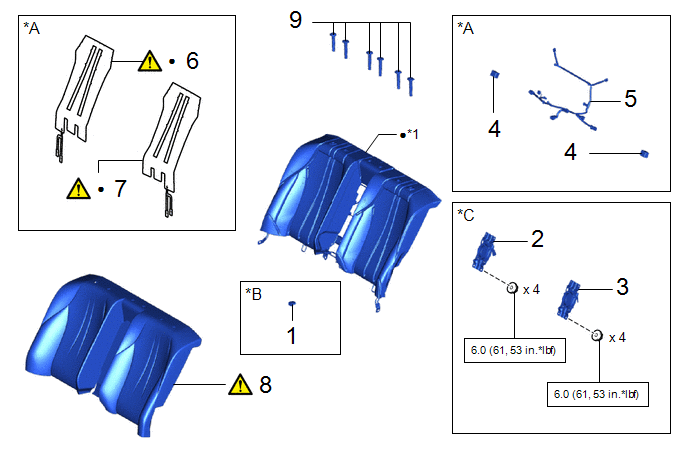

1	CONNECTOR HOLDER	82668F	-	-	-
2	REAR SEATBACK CLIMATE CONTROL BLOWER RH	85867B	-	-	-
3	REAR SEATBACK CLIMATE CONTROL BLOWER LH	85867C	-	-	-
4	SEAT HEATER CONTROL SUB-ASSEMBLY	87501D	-	-	-
5	REAR NO. 1 SEAT WIRE	82193A	-	-	-
6	SEATBACK HEATER ASSEMBLY RH	87510R	See step 6	-	-
7	SEATBACK HEATER ASSEMBLY LH	87510S	See step 6	-	-
8	BENCH TYPE REAR SEATBACK COVER	71077B	See step 8	-	-
9	HEADREST SUPPORT	-	-	-	-

*A	w/ Seat Heater System	*B	w/o Seat Heater System
*C	w/ Climate Control Seat System	-	-
*1	REAR SEATBACK PAD SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 2: Rear Seat Assembly Reassembly Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

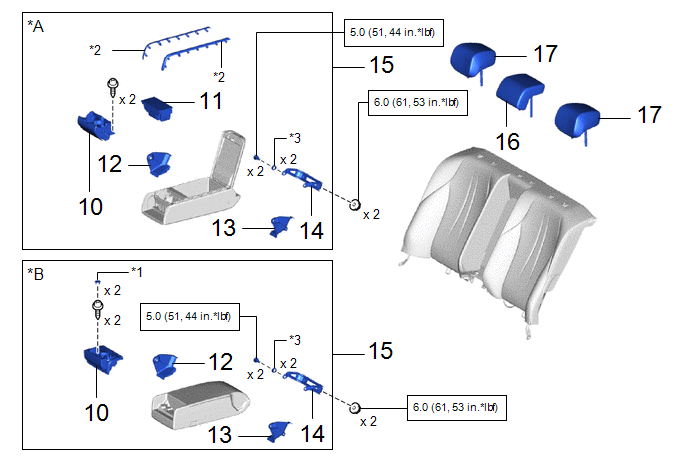

10	CUP HOLDER ASSEMBLY	66990	-	-	-
11	COOLER CONTROL SWITCH ASSEMBLY	88660C	-	-	-
12	CENTER ARMREST HINGE COVER RH	72868	-	-	-
13	CENTER ARMREST HINGE COVER LH	72869	-	-	-
14	REAR CENTER SEAT ARMREST HINGE	71281A	-	-	-
15	REAR CENTER SEAT ARMREST ASSEMBLY	72830	-	-	-
16	REAR CENTER SEAT HEADREST ASSEMBLY	71960B	-	-	-
17	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-

*A	w/ Combination Switch	*B	w/o Combination Switch
*1	REAR CENTER SEAT ARMREST COVER	*2	REAR SEAT ARMREST PLATE
*3	REAR SEAT STOPPER PLATE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Rear Seat Assembly Reassembly Components (3 Of 3)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

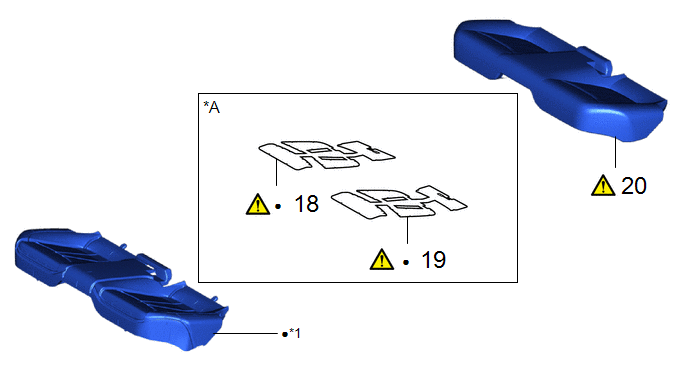

18	SEAT CUSHION HEATER ASSEMBLY RH	87510P	See step 18	-	-
19	SEAT CUSHION HEATER ASSEMBLY LH	87510Q	See step 18	-	-
20	BENCH TYPE REAR SEAT CUSHION COVER	71075B	See step 20	-	-

*A	w/ Seat Heater System	-	-
*1	REAR SEAT CUSHION PAD SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-
