Installation [11/2020 - ]: Procedure

Torque: 18.1 N.m (185 kgf/cm, 13 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

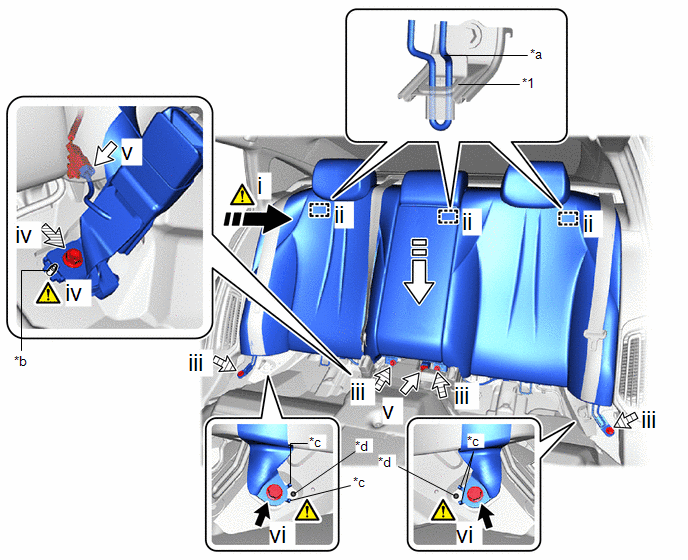

   *1	Rear Seatback Holder	-	-
   *a	Rear Hook	*b	Protruding Part
   *c	Location Pin	*d	Body Protrusion
   	Carry in in this Direction		Insert in this Direction
   	Bolt A		Connector
   	Bolt B		Bolt C

   1. Carry the bench type rear seatback assembly into the vehicle as shown in the illustration.
      NOTE:

      • Carrying the bench type rear seatback assembly into the vehicle must be performed by multiple people.
      • Do not damage the bench type rear seatback assembly, body exterior or interior parts.
   2. Insert the rear hook to the rear seatback holder as shown in the illustration.
   3. Install the 4 bolts C.

      Torque: 18.1 N.m (185 kgf/cm,

   4. Tighten the bolt B and install the floor anchor of the rear seat inner with center belt assembly RH.

      Torque: 42 N.m (428 kgf/cm,

      NOTE:

      Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding part.

   5. Connect the 2 connectors.
   6. Install the floor anchor of the rear seat outer belt assembly RH and rear seat outer belt assembly LH with the 2 bolts A.

      Torque: 42 N.m (428 kgf/cm,

      NOTE:

      When installing, make sure that the body protrusion comes between the location pins.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

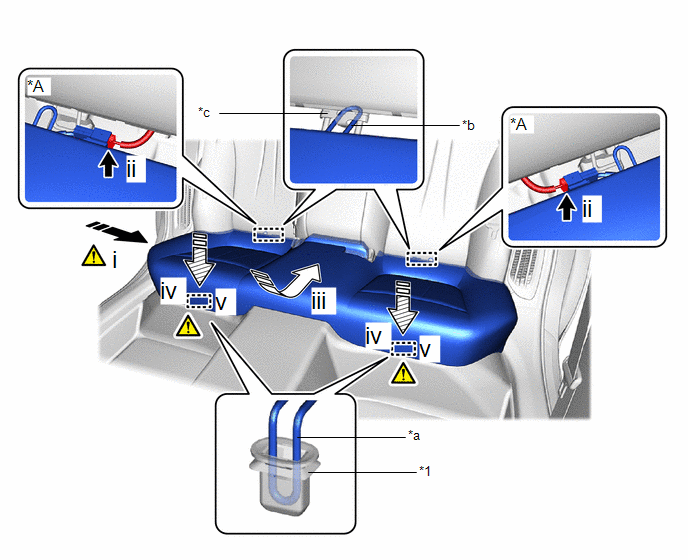

   *A	w/ Seat Heater System	-	-
   *1	Rear Seat Cushion Lock Hook	-	-
   *a	Front Hook	*b	Rear Hook
   *c	Seatback Frame	-	-
   	Carry in in this Direction		Install in this Direction (1)
   	Install in this Direction (2)	-	-

   1. Carry the bench type rear seat cushion assembly into the vehicle as shown in the illustration.
      NOTE:

      Do not damage the bench type rear seat cushion assembly, body exterior or interior parts.

   2. w/ Seat Heater System:

      1. Connect the 2 connectors.

   3. Attach the rear hook to the seatback frame as shown in the illustration.
   4. Attach the front hook to the rear seat cushion lock hook as shown in the illustration.
      NOTE:

      Be sure to attach the front hook one at a time.

   5. Make sure that the front hook is securely attached.
