COMPONENTS (INSTALLATION)

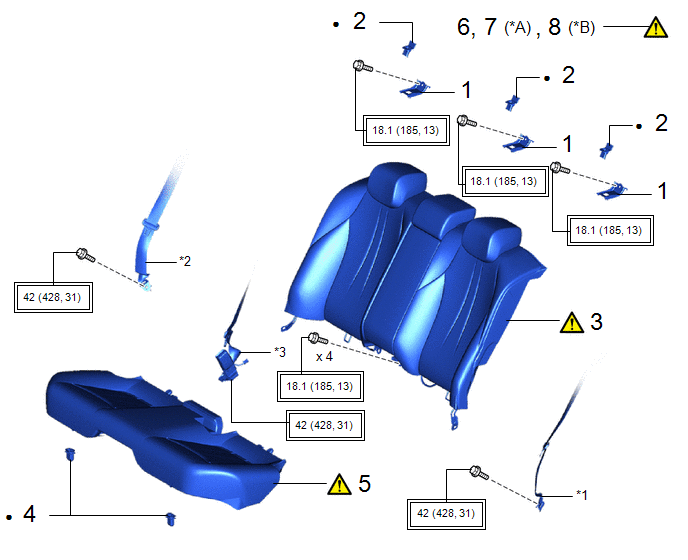

Fig 1: Rear Seat Assembly Installation Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR NO. 1 SEATBACK SET BRACKET	71891	-	-	-
2	REAR SEATBACK HOLDER	71398A	-	-	-
3	BENCH TYPE REAR SEATBACK ASSEMBLY	-	See step  3	-	-
4	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
5	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step  5	-	-
6	INSPECT SEAT BELT WARNING SYSTEM	-	See step  6	-	-
7	INSPECT SEAT HEATER SYSTEM	-	See step  7	-	-
8	INSPECT CLIMATE CONTROL SEAT SYSTEM	-	See step  8	-	-

*A	w/ Seat Heater System	*B	w/ Climate Control Seat System
*1	REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)	*2	REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)
*3	REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (FLOOR ANCHOR)	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

WARNING:

• Wear protective gloves. Sharp areas on the parts may injure your hands.
• There is risk of injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Move both front seats to the frontmost position and fold them forward.
