COMPONENTS (DISASSEMBLY)

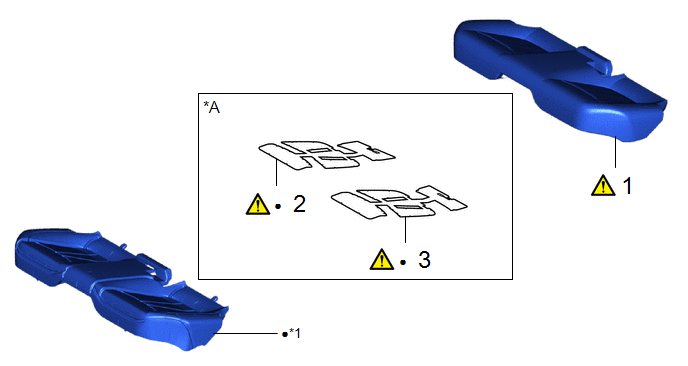

Fig 1: Rear Seat Assembly Disassembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	BENCH TYPE REAR SEAT CUSHION COVER	71075B	See step 1	-	-
2	SEAT CUSHION HEATER ASSEMBLY RH	87510P	See step 2	-	-
3	SEAT CUSHION HEATER ASSEMBLY LH	87510Q	See step 2	-	-

*A	w/ Seat Heater System	-	-
*1	REAR SEAT CUSHION PAD SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

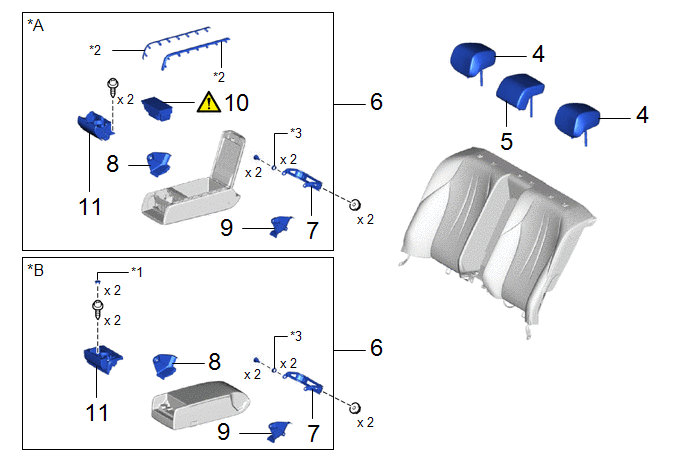

Fig 2: Rear Seat Assembly Disassembly Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-
5	REAR CENTER SEAT HEADREST ASSEMBLY	71960B	-	-	-
6	REAR CENTER SEAT ARMREST ASSEMBLY	72830	-	-	-
7	REAR CENTER SEAT ARMREST HINGE	71281A	-	-	-
8	CENTER ARMREST HINGE COVER RH	72868	-	-	-
9	CENTER ARMREST HINGE COVER LH	72869	-	-	-
10	COOLER CONTROL SWITCH ASSEMBLY	88660C	See step 10	-	-
11	CUP HOLDER ASSEMBLY	66990	-	-	-

*A	w/ Combination Switch	*B	w/o Combination Switch
*1	REAR CENTER SEAT ARMREST COVER	*2	REAR SEAT ARMREST PLATE
*3	REAR SEAT STOPPER PLATE	-	-

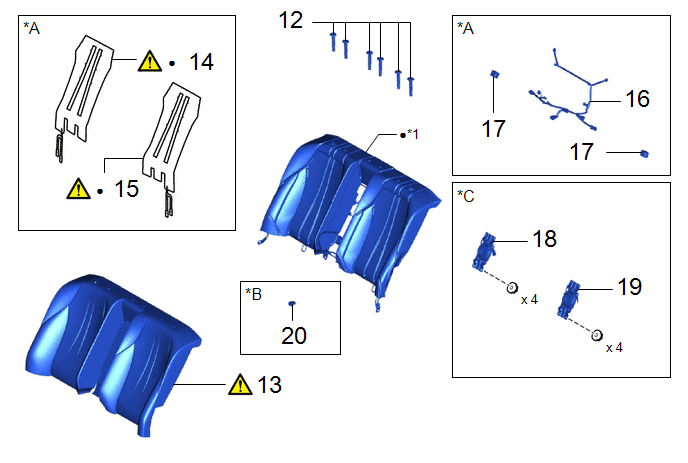

Fig 3: Rear Seat Assembly Disassembly Components (3 Of 3)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12	HEADREST SUPPORT	-	-	-	-
13	BENCH TYPE REAR SEATBACK COVER	71077B	See step 13	-	-
14	SEATBACK HEATER ASSEMBLY RH	87510R	See step 14	-	-
15	SEATBACK HEATER ASSEMBLY LH	87510S	See step 14	-	-
16	REAR NO. 1 SEAT WIRE	82193A	-	-	-
17	SEAT HEATER CONTROL SUB-ASSEMBLY	87501D	-	-	-
18	REAR SEATBACK CLIMATE CONTROL BLOWER RH	85867B	-	-	-
19	REAR SEATBACK CLIMATE CONTROL BLOWER LH	85867C	-	-	-
20	CONNECTOR HOLDER	82668F	-	-	-

*A	w/ Seat Heater System	*B	w/o Seat Heater System
*C	w/ Climate Control Seat System	-	-
*1	REAR SEATBACK PAD SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-
