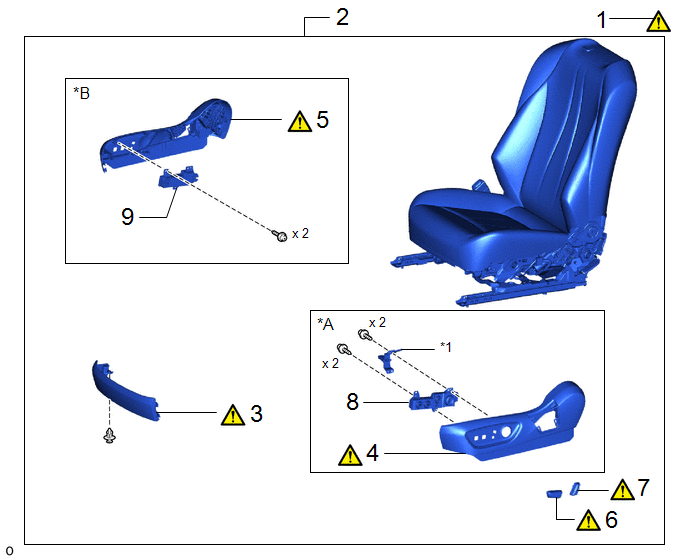

COMPONENT(REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | 71868Q | See step 1 | - | - |
| 2 | FRONT SEAT ASSEMBLY LH | 71812T | - | - | - |
| 3 | FRONT SEAT FRONT CUSHION SHIELD LH | 71868N | See step 3 | - | - |
| 4 | FRONT SEAT CUSHION SHIELD LH | 71812D | See step 4 | - | - |
| 5 | FRONT SEAT CUSHION SHIELD RH | 71811D | See step 5 | - | - |
| 6 | SLIDE & VERTICAL POWER SEAT SWITCH KNOB | 84921R | See step 6 | - | - |
| 7 | RECLINING POWER SEAT SWITCH KNOB | 84921Q | See step 7 | - | - |
| 8 | FRONT POWER SEAT SWITCH LH | 84922C | - | - | - |
| 9 | FRONT POWER SEAT SWITCH RH | 84922B | - | - | - |
| *A | for 8 Way Seat Type | *B | for 4 Way Seat Type |
| *1 | SEAT ADJUSTER SHIELD CLAMP BRACKET LH | - | - |
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced power seat switch removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary procedures | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) auxiliary battery terminal | Memorize steering angle neutral point | Parking assist monitor system | Refer to INITIALIZATION [11/2020 - 12/2022] |
| Panoramic view monitor system | Refer to INITIALIZATION [11/2020 - 12/2022] | ||
Front power seat control system (w/ Memory)
|
Initialize position control ECU | Front power seat control system (w/ Memory) | Refer to REGISTRATION [11/2020 - 12/2023] |
|
Zero point calibration (Occupant classification system) |
|
Refer to INITIALIZATION [11/2020 - 12/2023] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
WARNING:
- Wear protective gloves. Sharp areas on the parts may injure your hands.
- There is risk of injury.
HINT:
- When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane tracing assist system (for Mono camera type) Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. for Stereo Camera Type:
Refer to INITIALIZATION [11/2021 - ]
for Mono Camera Type:
Refer to INITIALIZATION [11/2020 - 12/2023]Lane tracing assist system (for Stereo camera type) Pre-collision system (for Mono camera type) Pre-collision system (for Stereo camera type) Lighting system (EXT) Advanced drive system Drive the vehicle straight ahead at a vehicle speed of 35 km/h or higher for 30 seconds* or more. Refer to INITIALIZATION [11/2021 - ] *: This can be completed by doing this for 30 seconds continuously or for a total of 30 seconds intermittently.
- Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Air conditioning system After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. -
- Learning completes when vehicle is driven
- Use the same procedure for the RH and LH sides.
- The following procedure is for the LH side.
