Installation [11/2020 - ]: Procedure

INSTALL FRONT POWER SEAT SWITCH LH (for 8 Way Seat Type)

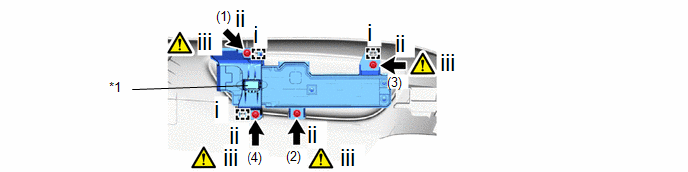

Fig 1: Front Power Seat Switch LH (For 8 Way Seat Type) Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Seat Adjuster Shield Clamp Bracket LH

Align the guide and set the front power seat switch RH and the seat adjuster shield clamp bracket LH to the front seat cushion shield LH.
Temporarily install the 4 screws.
Tighten the 4 screws in the order shown in the illustration and install the front power seat switch RH and the seat adjuster shield clamp bracket LH.
NOTE:
When tightening the front power seat switch RH with the screws, do not apply any force other than in the tightening direction.

INSTALL FRONT POWER SEAT SWITCH RH (for 4 Way Seat Type)

NOTE:

When tightening the front power seat switch LH with the screws, do not apply any force other than in the tightening direction.

INSTALL RECLINING POWER SEAT SWITCH KNOB
INSTALL SLIDE & VERTICAL POWER SEAT SWITCH KNOB
INSTALL FRONT SEAT CUSHION SHIELD LH (for 8 Way Seat Type)
INSTALL FRONT SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
INSTALL FRONT SEAT FRONT CUSHION SHIELD LH
INSTALL FRONT SEAT ASSEMBLY LH
Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023] , or refer to INSTALLATION [12/2023 - ]
