Caution / Notice / Hint

COMPONENT(INSTALLATION)

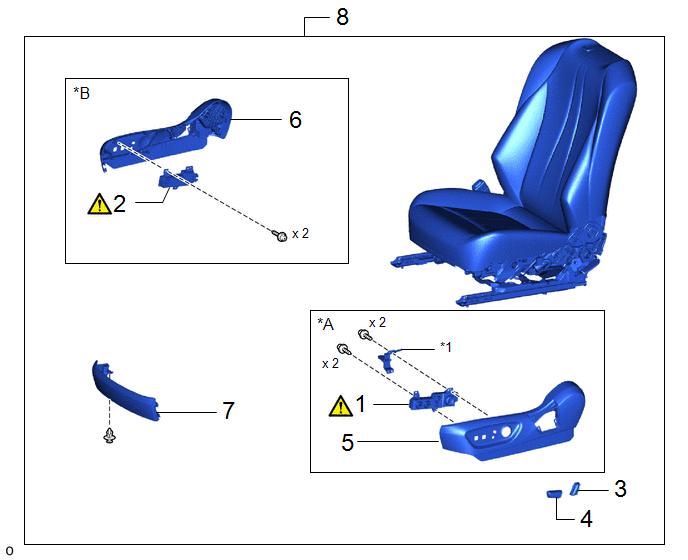

Fig 1: Power Seat Switch Installation Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FRONT POWER SEAT SWITCH LH	84922C	See step  1	-	-
2	FRONT POWER SEAT SWITCH RH	84922B	See step  2	-	-
3	RECLINING POWER SEAT SWITCH KNOB	84921Q	-	-	-
4	SLIDE & VERTICAL POWER SEAT SWITCH KNOB	84921R	-	-	-
5	FRONT SEAT CUSHION SHIELD LH	71812D	-	-	-
6	FRONT SEAT CUSHION SHIELD RH	71811D	-	-	-
7	FRONT SEAT FRONT CUSHION SHIELD LH	71868N	-	-	-
8	FRONT SEAT ASSEMBLY LH	-	-	-	-

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• Wear protective gloves. Sharp areas on the parts may injure your hands.
• There is risk of injury.

HINT:

• Use the same procedure for the RH and LH side.
• The following procedure is for the LH side.
