Inspection [11/2020 - ]: Procedure
- INSPECT POWER SEAT TILT MOTOR ASSEMBLY LH
- Check that the power seat tilt motor assembly LH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
OK

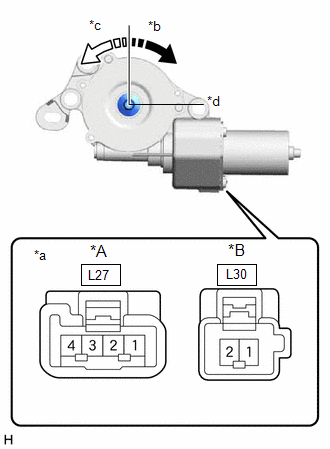

W/ MEMORYTester Connection Operational Direction L27-1 - Auxiliary battery positive (+)
L27-4 - Auxiliary battery negative (-)Motor gear rotates counterclockwise L27-4 - Auxiliary battery positive (+)
L27-1 - Auxiliary battery negative (-)Motor gear rotates clockwise W/O MEMORYTester Connection Operational Direction L30-1 - Auxiliary battery positive (+)
L30-2 - Auxiliary battery negative (-)Motor gear rotates counterclockwise L30-2 - Auxiliary battery positive (+)
L30-1 - Auxiliary battery negative (-)Motor gear rotates clockwise *A w/ Memory *B w/o Memory *a Component without harness connected
(Power Seat Tilt Motor Assembly LH)*b Clockwise *c Counterclockwise *d Motor Gear If the result is not as specified, replace the power seat tilt motor assembly LH.
- Check that the power seat tilt motor assembly LH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
- INSPECT POWER SEAT LIFTER MOTOR ASSEMBLY LH
- Check that the power seat lifter motor assembly LH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
OK

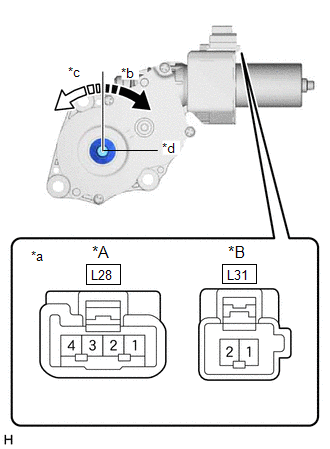

W/ MEMORYTester Connection Operational Direction L28-1 - Auxiliary battery positive (+)
L28-4 - Auxiliary battery negative (-)Motor gear rotates counterclockwise L28-4 - Auxiliary battery positive (+)
L28-1 - Auxiliary battery negative (-)Motor gear rotates clockwise W/O MEMORYTester Connection Operational Direction L31-1 - Auxiliary battery positive (+)
L31-2 - Auxiliary battery negative (-)Motor gear rotates counterclockwise L31-2 - Auxiliary battery positive (+)
L31-1 - Auxiliary battery negative (-)Motor gear rotates clockwise *A w/ Memory *B w/o Memory *a Component without harness connected
(Power Seat Lifter Motor Assembly LH)*b Clockwise *c Counterclockwise *d Motor Gear If the result is not as specified, replace the power seat lifter motor assembly LH.
- Check that the power seat lifter motor assembly LH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
- INSPECT POWER SEAT TILT MOTOR ASSEMBLY RH
- Check that the power seat tilt motor assembly RH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
OK

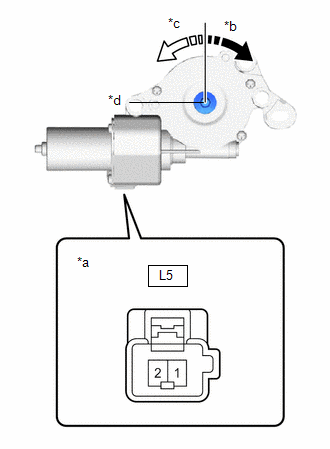

Tester Connection Operational Direction L5-1 - Auxiliary battery positive (+)
L5-2 - Auxiliary battery negative (-)Motor gear rotates clockwise L5-2 - Auxiliary battery positive (+)
L5-1 - Auxiliary battery negative (-)Motor gear rotates counterclockwise *a Component without harness connected
(Power Seat Tilt Motor Assembly RH)*b Clockwise *c Counterclockwise *d Motor Gear If the result is not as specified, replace the power seat tilt motor assembly RH.
- Check that the power seat tilt motor assembly RH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
- INSPECT POWER SEAT LIFTER MOTOR ASSEMBLY RH
- Check that the power seat lifter motor assembly RH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
OK

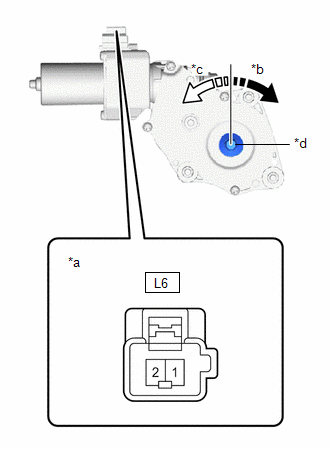

Tester Connection Operational Direction L6-1 - Auxiliary battery positive (+)
L6-2 - Auxiliary battery negative (-)Motor gear rotates clockwise L6-2 - Auxiliary battery positive (+)
L6-1 - Auxiliary battery negative (-)Motor gear rotates counterclockwise *a Component without harness connected
(Power Seat Lifter Motor Assembly RH)*b Clockwise *c Counterclockwise *d Motor Gear If the result is not as specified, replace the power seat lifter motor assembly RH.
- Check that the power seat lifter motor assembly RH moves smoothly when the auxiliary battery is connected to the lifter motor connector terminals.
