Seat Heater for Rear Right Seat does not Operate [12/2023 - ]: Wiring Diagram

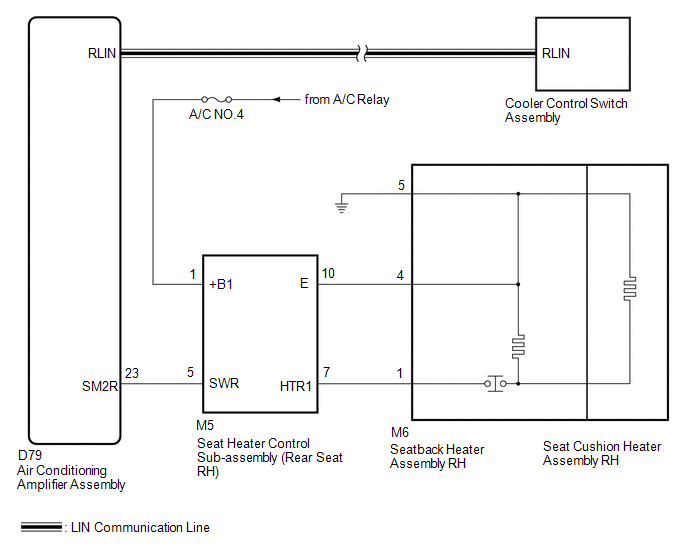

Fig 1: Seat Heater For Rear Right Seat Does Not Operate [12/2023 - ]

GTY1209579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
