Seat Heater for Front Right Seat does not Operate [11/2020 - 12/2022]: Wiring Diagram

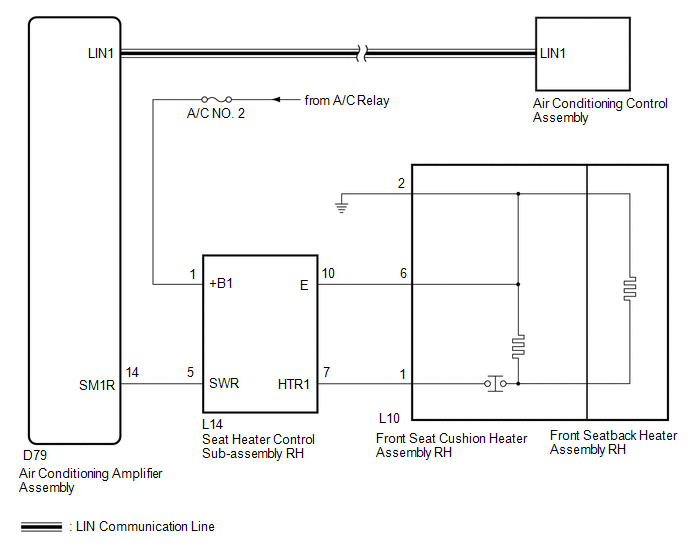

Fig 1: Seat Heater For Front Right Seat Does Not Operate [11/2020 - 12/2022]
GTY987092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
