Seat Heater for Front Left Seat does not Operate [12/2022 - 12/2023]: Wiring Diagram

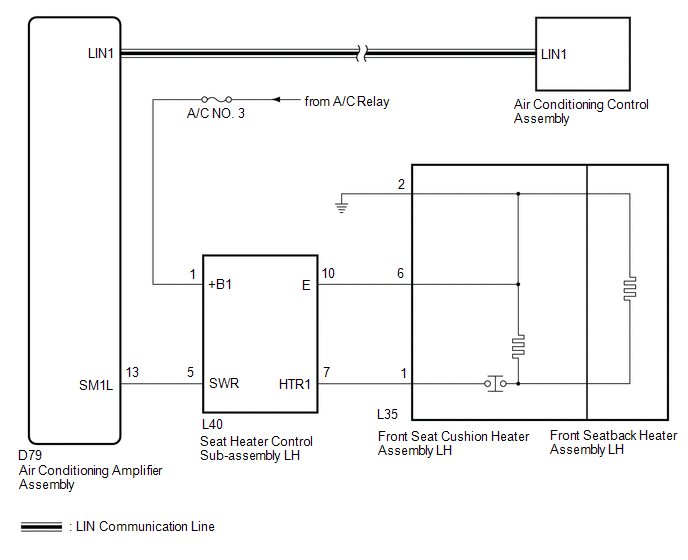

Fig 1: Seat Heater For Front Left Seat Does Not Operate [12/2022 - 12/2023]
GTY987100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
