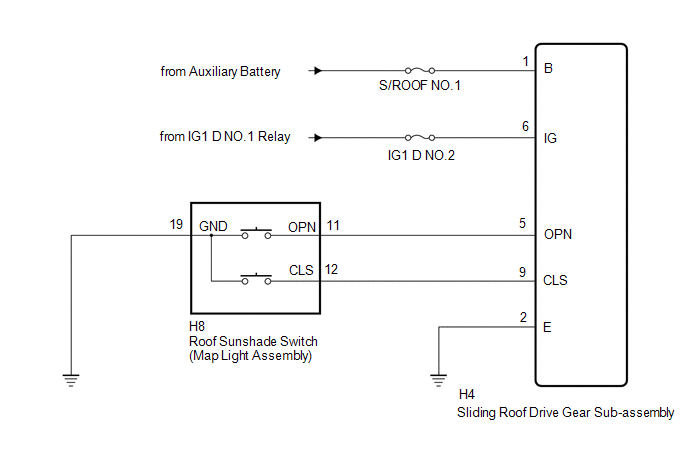

Roof Sunshade does not Move by Operating Roof Sunshade Switch [11/2020 - 12/2023]: Wiring Diagram

GTY981764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
