Parts Location [12/2022 - 12/2023]: Illustration

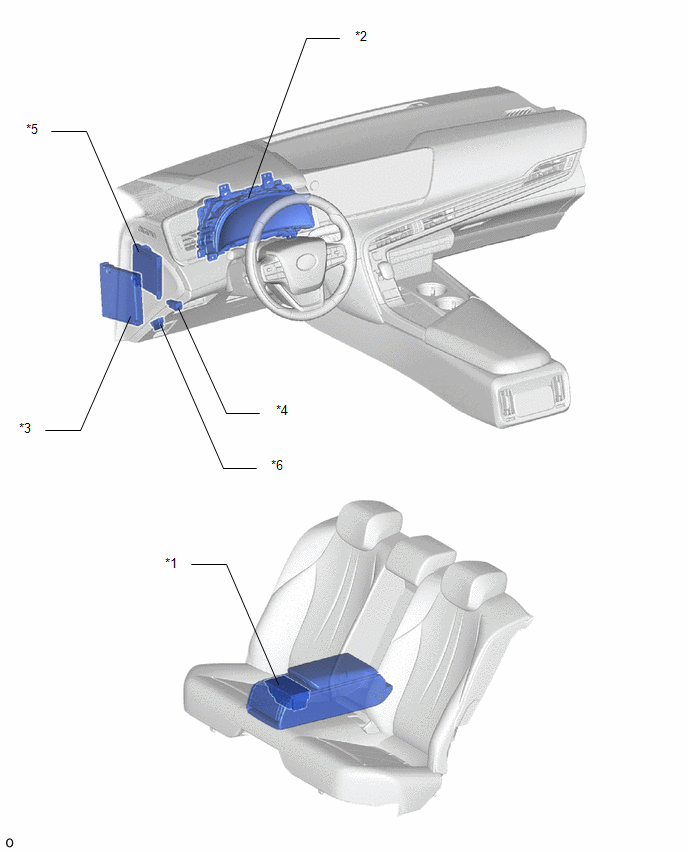

Fig 1: Rear Sunshade System Replacement Components (1 Of 2) [12/2022 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COOLER CONTROL SWITCH ASSEMBLY - REAR SUNSHADE SWITCH	*2	COMBINATION METER ASSEMBLY
*3	EV CONTROL ECU	*4	REAR SUNSHADE SWITCH ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	DLC3

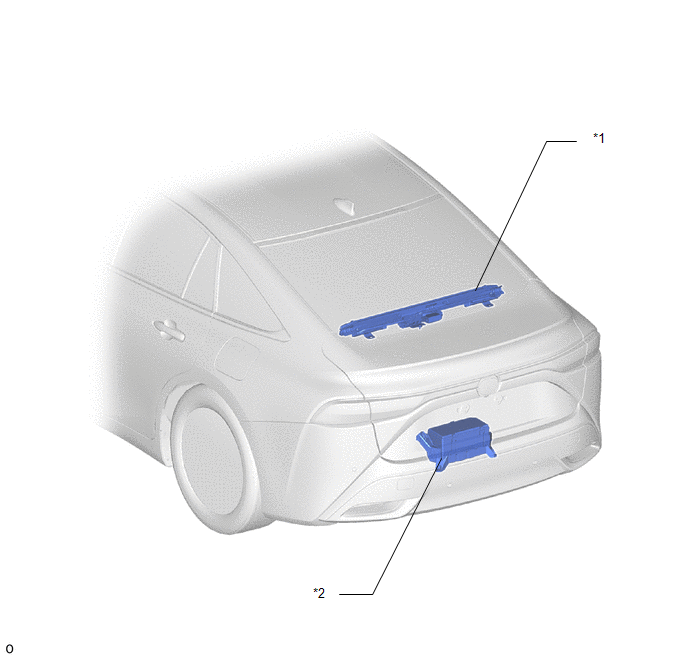

Fig 1: Rear Sunshade System Replacement Components (2 Of 2) [12/2022 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

REAR WINDOW SHADE ASSEMBLY

*2

LUGGAGE ROOM RELAY BLOCK - LUG-IG1 NO. 1 FUSE - SHADE RR FUSE
