Installation [11/2020 - 11/2021]: Procedure

INSTALL NO. 2 TELEPHONE BRACKET (w/o Navigation System)
INSTALL NO. 1 TELEPHONE BRACKET (w/o Navigation System)
INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/o Navigation System)
INSTALL AIR CONDITIONING CONTROL ASSEMBLY (w/o Navigation System)
Refer to INSTALLATION [11/2020 - ]
INSTALL NO. 2 INTEGRATION CONTROL BRACKET (w/ Navigation System)
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
INSTALL NO. 1 INTEGRATION CONTROL BRACKET (w/ Navigation System)
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Navigation System)

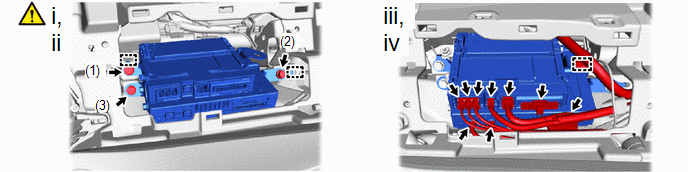

1. Fig 1: DCM (Telematics Transceiver) With Bracket Tightening Sequence [11/2020 - 11/2021]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Attach the guide to temporarily install the DCM (telematics transceiver) with bracket.
  2. Install the DCM (telematics transceiver) with bracket with the 3 bolts in the order shown in the illustration.
    Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)
  3. Attach the clamp.
  4. Connect the 9 connectors.
INSTALL NAVIGATION ECU ASSEMBLY WITH BRACKET (w/ Navigation System)
INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Navigation System)
Refer to INSTALLATION [11/2020 - 12/2022]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [11/2020 - 12/2022]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021]
DCM ACTIVATION
HINT:

When replacing the DCM (telematics transceiver), perform DCM activation.

Refer to DCM ACTIVATION [11/2020 - 12/2022]
