Parts Location [12/2022 - 12/2023]: Illustration

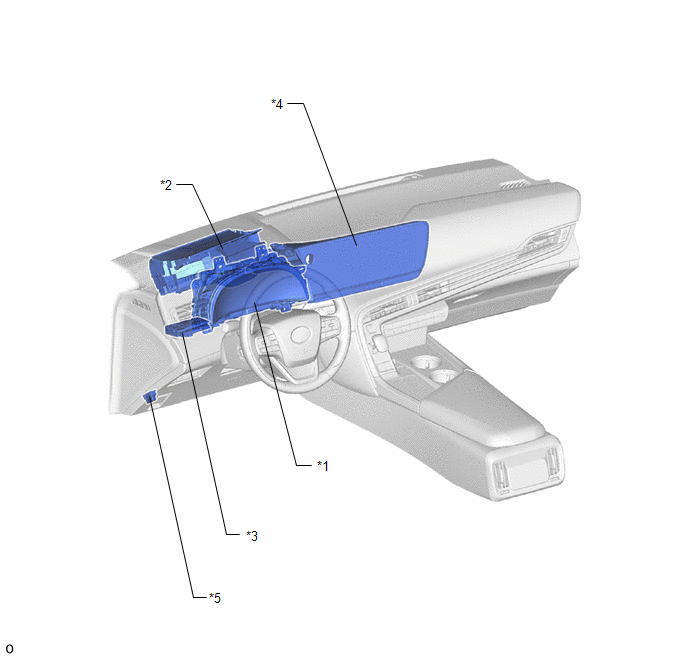

Fig 1: Headup Display System Replacement Components [12/2022 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER ASSEMBLY	*2	METER MIRROR SUB-ASSEMBLY
*3	TRIP SWITCH - HEADUP DISPLAY SWITCH	*4	RADIO AND DISPLAY RECEIVER ASSEMBLY
*5	DLC3	-	-
