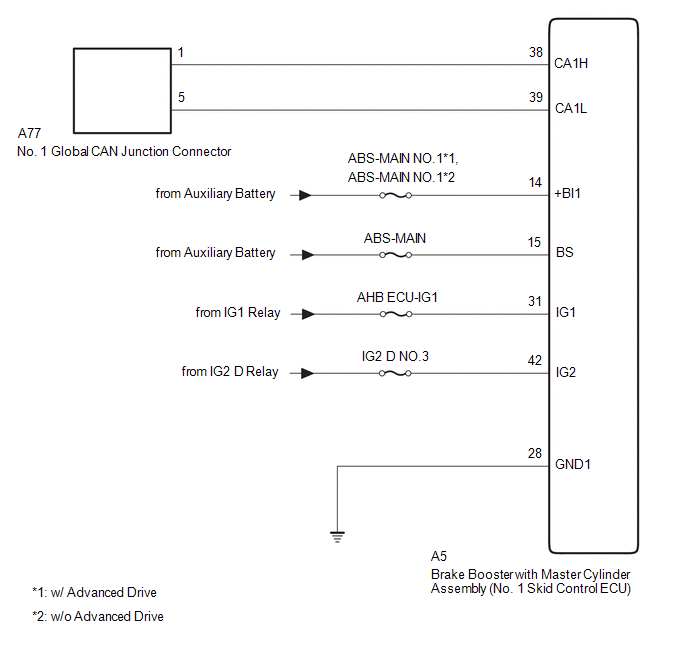

Brake Booster (Skid Control ECU) Communication Stop Mode [11/2020 - 11/2021]: Wiring Diagram

GTY976022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
