Installation [08/2015 - ]: Procedure
- INSTALL NO. 3 AIR TUBE
- INSTALL NO. 2 AIR TUBE
- INSTALL AIR SWITCHING VALVE ASSEMBLY
- INSTALL AIR PIPE SUBASSEMBLY
- Connect the 2 No. 1 air hoses to the air pipe.
- Connect the air pipe to the air switching valve, and install the air pipe with the 2 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Connect the air pump connector clamp holder.
- Attach the wire harness claw.
- Connect the air pump connector.

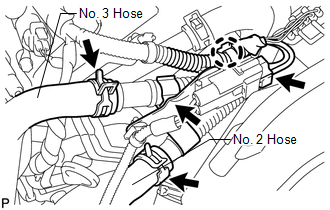

- Connect the No. 2 and No. 3 hoses.
- INSTALL FRONT WATER BY-PASS JOINT

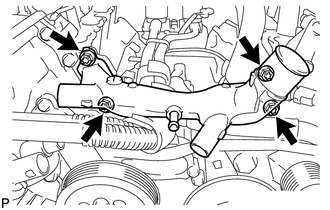

- CONNECT NO. 2 WATER BY-PASS PIPE SUBASSEMBLY (w/ Oil Cooler)
- CONNECT NO. 2 WATER BY-PASS HOSE
- CONNECT NO. 1 WATER BY-PASS HOSE

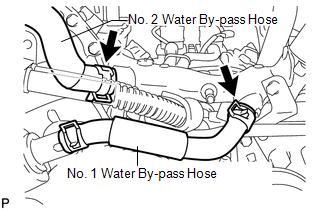

- Connect the No. 1 water by-pass hose to the water by-pass joint and water inlet housing.
- INSTALL NO. 1 ENGINE COVER
HINT:

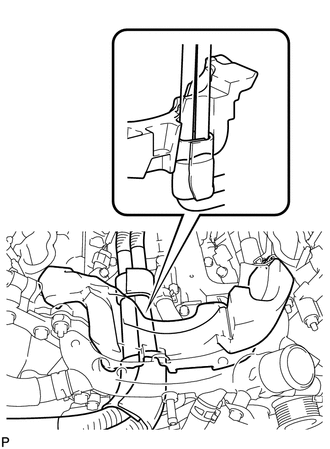

- Align the No. 1 engine cover cutouts with the air tube.
- Align the No. 1 engine cover with the air switching valve surface and cylinder head wall.
NOTE:Make sure that the No. 1 engine cover is flush with the top surface of the intake port of the cylinder head for bank 1 and bank 2.
- CONNECT FUEL TUBE CLAMP
- INSTALL NO. 2 ENGINE COVER
HINT:
- Align the No. 2 engine cover cutout with the air tube.
- Align the No. 2 engine cover with the front water by-pass joint and cylinder head wall.
NOTE:Make sure that the No. 2 engine cover is flush with the top surface of the intake port of the cylinder head.
- INSTALL INTAKE MANIFOLD
- Install the intake manifold (Refer to INSTALLATION [08/2015 - ] ).
- INSTALL EXHAUST MANIFOLD SUBASSEMBLY
- Install the exhaust manifold (Refer to INSTALLATION [08/2015 - ] ).
