Inspection [08/2015 - ]: Procedure

INSPECT LIGHT CONTROL RHEOSTAT

Inspect the light control rheostat.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

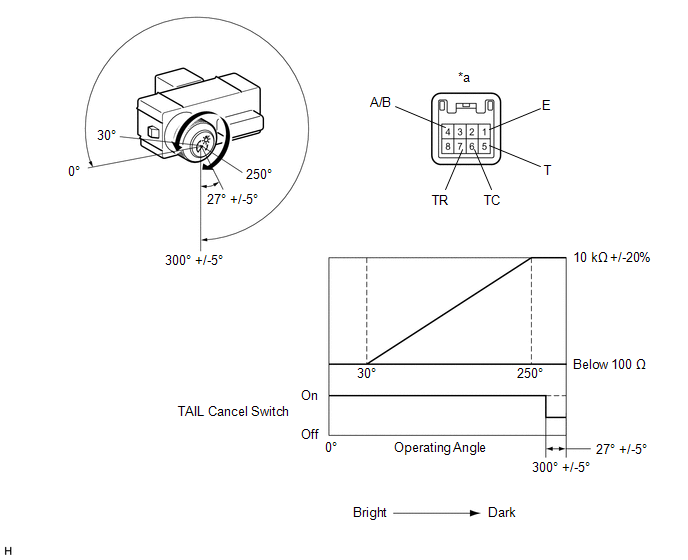

TEXT IN ILLUSTRATION

Component without harness connected
(Light Control Rheostat)

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
6 (TC) - 1 (E)	TAIL cancel switch off → on	10 kΩ or higher → Below 1 Ω
5 (T) - 1 (E)	Always	10 kΩ or higher
7 (TR) - 1 (E)	Light control rheostat fully turned right → fully turned left	10 kΩ or higher → Below 100 Ω

If the result is not as specified, replace the light control rheostat.
