Installation [08/2015 - ]: Procedure

INSTALL COMBINATION METER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the connectors.
2. Install the combination meter assembly with the 4 screws.

INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the connectors.

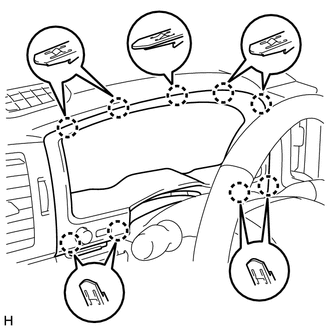

Attach the 9 claws to install the No. 2 instrument cluster finish panel sub-assembly.

Attach the 4 claws.

INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 35 [08/2015 - ]
INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 36 [08/2015 - ]
INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 12 [08/2015 - ]
INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
Refer to PROCEDURE - Step 13 [08/2015 - ]
ENABLE AUTOAWAY/RETURN FUNCTION
1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - ] ).
