System Description [08/2017 - 08/2019]

  1. OUTLINE OF COMBINATION METER ASSEMBLY

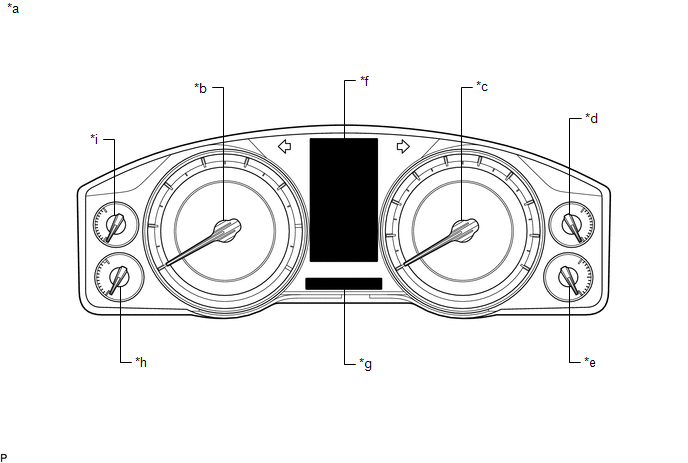

    Fig 1: Instrument Cluster Identification
    GTY561775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Example *b Tachometer
    *c Speedometer *d Voltage Meter
    *e Fuel Receiver Gauge *f Multi-information Display
    *g ODO/TRIP Meter *h Engine Coolant Temperature Receiver Gauge
    *i Oil Pressure Receiver Gauge - -
  2. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY
    METER OR GAUGE

    Meter or Gauge Condition Input/Output Signal Communication Line Sender
    Speedometer Gauge Input Vehicle speed signal CAN Brake actuator assembly (skid control ECU)
    Tachometer Gauge Input Engine speed signal CAN ECM
    Fuel receiver gauge Gauge Input Fuel level signal Direct line Fuel sender gauge assembly
    Vehicle speed signal CAN Brake actuator assembly (skid control ECU)
    Starter signal ECM
    Engine coolant temperature receiver gauge Gauge Input Engine coolant temperature signal CAN ECM
    Voltage meter Gauge Input Battery voltage Direct line Battery
    Oil pressure receiver gauge Gauge Input Engine oil pressure signal Direct line Oil pressure sender gauge assembly
    Engine speed signal CAN ECM
    WARNING OR INDICATOR

    Warning or Indicator Condition Input/Output Signal Communication Line Sender
    Headlight indicator light (with mph units) Turns on Input Low beam head indicator light request signal CAN Main body ECU (multiplex network body ECU)
    Taillight indicator light (with km/h units) Turns on Input Tail indicator light request signal CAN Main body ECU (multiplex network body ECU)
    Turn indicator light Blinks Input Turn signal switch Direct line Headlight dimmer switch assembly
    Hazard warning signal switch Multi-media module receiver assembly
    Hazard indicator light activation request signal CAN Main body ECU (multiplex network body ECU)
    Front fog indicator light Turns on Input Front fog indicator light request signal CAN Main body ECU (multiplex network body ECU)
    ECT PWR indicator light Turns on Input Power mode signal CAN ECM
    2nd STRT indicator light Turns on Input 2nd STRT indicator light request signal CAN ECM
    Fuel level warning light Turns on Input Fuel level signal Direct line Fuel sender gauge assembly
    BRAKE warning light Turns on Input Brake warning light request signal CAN Brake actuator assembly (skid control ECU)
    Fuel level warning signal
    ABS warning light Turns on/Blinks Input Brake warning light control signal CAN Brake actuator assembly (skid control ECU)
    Slip indicator light Turns on/Blinks Input Slip indicator light request signal CAN Brake actuator assembly (skid control ECU)
    CRAWL indicator light Turns on/Blinks Input CRAWL indicator light request signal CAN Brake actuator assembly (skid control ECU)
    Door warning light Turns on Input Front door courtesy light switch LH signal CAN Main body ECU (multiplex network body ECU)
    Front door courtesy light switch RH signal
    Rear door courtesy light switch LH signal
    Rear door courtesy light switch RH signal
    Back door courtesy light switch signal
    Driver side seat belt warning light Turns on/Blinks Input Driver side seat belt buckle switch signal CAN Main body ECU (multiplex network body ECU)
    Parking brake switch signal (with mph units)
    Shift position P signal (with mph units) ECM
    Vehicle speed signal (with mph units) Brake actuator assembly (skid control ECU)
    MIL (Malfunction indicator lamp) Turns on/Blinks Input MIL (malfunction indicator lamp) request signal CAN ECM
    Charge warning light Turns on Input Charge warning light request signal CAN ECM
    SRS warning light Turns on Input Airbag warning light control signal CAN Airbag sensor assembly
    4LO indicator light Turns on/Blinks Input 4LO indicator light control signal CAN 4 wheel drive control ECU
    Center differential lock indicator light Turns on/Blinks Input CTR DIFF LOCK indicator light control signal CAN 4 wheel drive control ECU
    Rear differential lock indicator light Turns on/Blinks Input RR DIFF LOCK indicator light control signal CAN 4 wheel drive control ECU
    Cruise indicator light (w/ Cruise Control System) Turns on Input Cruise indicator light request signal CAN ECM
    Radar cruise indicator light (w/ Dynamic Radar Cruise Control System) Turns on Input Cruise indicator light request signal CAN ECM
    PCS indicator light (w/ Pre-collision System) Turns on/Blinks Input PCS indicator control signal CAN Drive support control ECU
    Master warning light Turns on/Blinks Output Each system warning signal CAN Each system ECU
    ECO drive indicator light Blinks Input ECO drive indicator request signal CAN ECM
    SET indicator light Turns on Input Cruise set indicator light request signal CAN ECM
    TRAC OFF indicator light (with mph units) Turns on Input TRAC OFF indicator light request signal CAN Brake actuator assembly (skid control ECU)
    TRC OFF indicator light (with km/h units) Turns on Input TRC OFF indicator light request signal CAN Brake actuator assembly (skid control ECU)
    Multi-terrain select indicator light Turns on/Blinks Input Multi-terrain select indicator light request signal CAN Brake actuator assembly (skid control ECU)
    Blinks Input Multi-terrain select warning signal
    Turn assist indicator light Turns on/Blinks Input Turn assist indicator light request signal CAN Brake actuator assembly (skid control ECU)
    Headlight leveling warning light Turns on Input Headlight leveling warning signal CAN Headlight leveling ECU assembly
    AHB indicator light Turns on Input Automatic high beam indicator light request signal CAN Main body ECU (multiplex network body ECU)
    PPS warning light Turns on/Blinks Input PPS warning light control signal CAN Power steering control ECU
    Parking brake warning light Turns on Input Parking brake switch signal CAN Main body ECU (multiplex network body ECU)
    VSC OFF indicator light Turns on Input VSC OFF indicator light request signal CAN Brake actuator assembly (skid control ECU)
    LDA indicator light (w/ Lane Departure Alert System) Turns on Input Lane departure alert indicator light request signal CAN Forward recognition camera
    BSM indicator light (w/ Blind Spot Monitor System) Turns on Input BSD module status signal CAN Blind spot monitor sensor LH
    BSD main switch signal
    RCTA indicator light (w/ Blind Spot Monitor System) Turns on Input RCTA switch signal CAN Blind spot monitor sensor LH
    Tire pressure warning light (w/ Tire Pressure Monitoring System) Turns on/Blinks Input Tire pressure warning light signal CAN Tire pressure warning ECU and receiver
    BUZZER

    Item Condition Input/Output Signal Communication Line Sender
    Smart key warning Sounds once Input Meter buzzer single-shot request CAN Certification ECU (Smart key ECU assembly)
    Sounds intermittently Input Meter buzzer intermittence request
    Sounds continuously Input Meter buzzer continuation request
    Immobiliser key identification completion Sounds once Input Immobiliser key identification completion signal CAN Certification ECU (Smart key ECU assembly)
    Multi-information display warning buzzer Sounds once Input Multi-information display warning signal CAN Related ECUs
    Radar cruise low speed range preceding vehicle lost buzzer (w/ Dynamic Radar Cruise Control System) Sounds twice Input Dynamic radar cruise control warning signal CAN ECM
    Seat belt warning buzzer Sounds intermittently Input Front passenger seat occupant detection sensor signal (with km/h units) Direct Line Front passenger seat occupant detection sensor
    Front passenger seat belt buckle switch signal (with km/h units) Front passenger seat belt buckle switch
    Front passenger seat occupant detection sensor signal (with mph units) CAN Airbag sensor assembly
    Front passenger seat belt buckle switch signal (with mph units)
    Driver side seat belt buckle switch signal Main body ECU (multiplex network body ECU)
    Parking brake switch signal (with mph units)
    Shift position P signal (with mph units) ECM
    Shift position R signal
    Vehicle speed signal (with mph units) Brake actuator assembly (skid control ECU)
    PKB-ON driving warning buzzer Sounds intermittently Input Parking brake switch signal CAN Main body ECU (multiplex network body ECU)
    Vehicle speed signal (with mph units) Brake actuator assembly (skid control ECU)
    Door open while driving warning Sounds intermittently Input Front door courtesy light switch LH signal CAN Main body ECU (multiplex network body ECU)
    Front door courtesy light switch RH signal
    Rear door courtesy light switch LH signal
    Rear door courtesy light switch RH signal
    Back door courtesy light switch signal
    Vehicle speed signal Brake actuator assembly (skid control ECU)
    Sports shift reject buzzer Sounds twice Input Reject buzzer signal CAN ECM
    Slide roof opening buzzer Sounds once Input Slide roof opening signal CAN Main body ECU (multiplex network body ECU)
    4 wheel drive buzzer Sounds intermittently Input 4WD buzzer control signal CAN 4 wheel drive control ECU
    3 Sounds
    Restart while driving notification buzzer Sounds continuously Input Smart key system warning signal CAN Certification ECU (Smart key ECU assembly)
    Key reminder warning buzzer Sounds intermittently Input Key switch signal CAN Main body ECU (multiplex network body ECU)
    Front door courtesy light switch LH signal
    Lane departure warning buzzer (w/ Lane Departure Alert System) Sounds intermittently Input Lane departure warning buzzer signal CAN Forward recognition camera
    Engine switch operation while driving warning buzzer Sounds intermittently Input Engine switch operation buzzer intermittence request signal CAN Certification ECU (Smart key ECU assembly)
    Engine coolant temperature warning buzzer Sounds once Input Engine coolant temperature signal CAN ECM
    Engine warning buzzer Sounds once Input MIL (malfunction indicator lamp) request signal CAN ECM
    Brake warning buzzer Sounds intermittently Input Brake warning buzzer request signal CAN Brake actuator assembly (skid control ECU)
    Brake warning light request signal
    HAC warning buzzer Sounds once Input Brake warning buzzer request signal CAN Brake actuator assembly (skid control ECU)
    Sounds twice
    Sounds intermittently
    VSC warning buzzer Sounds intermittently Input Brake warning buzzer request signal CAN Brake actuator assembly (skid control ECU)
    CRAWL warning buzzer Sounds intermittently Input CRAWL buzzer request signal CAN Brake actuator assembly (skid control ECU)
    Light reminder warning buzzer Sounds continuously Input Lighting system status signal CAN Main body ECU (multiplex network body ECU)
    Key switch signal
    Front door courtesy light switch LH signal
    Flasher buzzer Sounds intermittently Input Hazard light activation request signal CAN Main body ECU (multiplex network body ECU)
    Turn signal switch signal Direct line Headlight dimmer switch assembly
    Hazard warning switch signal Multi-media module receiver assembly
    MULTI-INFORMATION DISPLAY

    Item Condition Input/Output Signal Communication Line Sender
    Current fuel consumption Displayed Input Engine speed signal CAN ECM
    Fuel consumption signal
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Average fuel consumption (After reset) Displayed Input Reset switch Direct line Reset switch
    Engine speed signal CAN ECM
    Fuel consumption signal
    Average fuel consumption reset request signal DCM (telematics transceiver) (2015/08-2016/03)
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Average fuel consumption (After start) Displayed Input Engine speed signal CAN ECM
    Fuel consumption signal
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Average fuel consumption (After refuel) Displayed Input Engine speed signal CAN ECM
    Fuel consumption signal
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Average speed (After reset) Displayed Input Reset switch Direct line Reset switch
    Engine speed signal CAN ECM
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Average speed (After start) Displayed Input Engine speed signal CAN ECM
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Elapsed time (After reset) Displayed Input Reset switch Direct line Reset switch
    Engine speed signal CAN ECM
    Elapsed time (After start) Displayed Input Engine speed signal CAN ECM
    Distance (Range) Displayed Input Engine speed signal CAN ECM
    Fuel consumption signal
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Fuel level signal Direct line Fuel sender gauge assembly
    Distance (After start) Displayed Input Engine speed signal CAN ECM
    Vehicle speed pulse input signal Brake actuator assembly (skid control ECU)
    Vehicle speed signal
    Oil maintenance mileage Displayed Input Oil maintenance mileage signal CAN ECM
    Oil maintenance Unit signal
    Screen inversion Signal
    Outside temp Displayed Input Ambient temperature display signal CAN Main body ECU (multiplex network body ECU)
    0 or 0.5 below decimal point of ambient temperature display switch signal
    Icy street warning Displayed Input Ambient temperature display signal CAN Main body ECU (multiplex network body ECU)
    0 or 0.5 below decimal point of ambient temperature display switch signal
    Headlight indicator Displayed Input LED headlamp indicator light request signal CAN Main body ECU (multiplex network body ECU)
    Headlight leveling ECU assembly
    A/T OIL TEMP indicator Displayed Input A/T oil temperature warning signal CAN ECM
    Washer fluid low level indicator Displayed Input Washer fluid low level signal Direct Line Level warning switch assembly
    Engine oil low level indicator Displayed Input Engine speed signal CAN ECM
    4LO indicator light control signal 4 wheel drive control ECU
    Engine oil level sensor signal Direct line Oil level sensor assembly
    BOS/DSC level indicator Displayed Input BOS indicator light signal CAN ECM
    DSC indicator light signal
    Cruise control indicator Displayed Input Cruise control indicator request signal CAN ECM
    RADAR READY (w/ Dynamic Radar Cruise Control System) Displayed Input Cruise indicator light request signal CAN Drive support control ECU
    Radar cruise ready signal
    Radar cruise control / lane departure alert displayed tab (w/ Dynamic Radar Cruise Control System, w/ Lane Departure Alert System) Displayed Input Cruise indicator light request signal CAN Drive support control ECU
    Radar cruise warning signal
    ADJUSTING FRONT RADAR BEAM (w/ Dynamic Radar Cruise Control System) Displayed Input Cruise control checking signal CAN Drive support control ECU
    CHECKING CRUISE CONTROL BRAKE (w/ Dynamic Radar Cruise Control System)
    Cruise Control Malfunction Visit Your Dealer Displayed Input Cruise control warning signal CAN ECM
    Radar Cruise Control Unavailable Clean Sensor (w/ Dynamic Radar Cruise Control System)
    Radar Cruise Control Unavailable (w/ Dynamic Radar Cruise Control System)
    Crawl Has Been Deactivated Displayed Input Multi-display displayed signal CAN Brake actuator assembly (skid control ECU)
    Crawl Not Available Select L4 and Shift to [D] or [R] Position
    Crawl Not Available Check System Operation Conditions
    BRAKE! (w/ Pre-collision System) Displayed Input PCS warning displayed signal CAN Drive support control ECU
    Pre-Collision Unavailable (w/ Pre-collision System) Displayed Input PCS temporary unusable condition text displayed signal CAN Drive support control ECU
    Pre-Collision Malfunction Visit Your Dealer (w/ Pre-collision System) Displayed Input PCS fault condition text displayed signal CAN Drive support control ECU
    VSC Turned Off Pre-Collision Brake System Unavailable (w/ Pre-collision System) Displayed Input PB temporary unusable condition text displayed signal CAN Drive support control ECU
    VSC OFF indicator light request signal CAN Brake actuator assembly (skid control ECU)
    Forward Camera System Unavailable (w/ Dynamic Radar Cruise Control System. w/ Pre-collision System, w/ Lane Departure Alert System) Displayed Input Front camera temperature warning displayed signal CAN Drive support control ECU
    Front Camera Systems Unavailable Clean Windshield (w/ Dynamic Radar Cruise Control System. w/ Pre-collision System, w/ Lane Departure Alert System) Displayed Input Front camera dirty warning displayed signal CAN Drive support control ECU
    Front camera vision blocked warning signal Forward recognition camera
    Lane departure alert indicator light request signal
    Pre-Collision System Unavailable (w/ Pre-collision System) Displayed Input Radar sensor temperature warning displayed signal CAN Drive support control ECU
    Pre-Collision System Unavailable Clean Sensor (w/ Pre-collision System) Displayed Input Radar sensor dirty warning displayed signal CAN Drive support control ECU
    CHECKING PRE-CRASH BRAKE (w/ Pre-collision System) Displayed Input Inspection Mode displayed request signal CAN Drive support control ECU
    Pre-Collision System Off (w/ Pre-collision System) Displayed Input PCS warning message request signal CAN Drive support control ECU
    PCS Warning distance unusable condition message displayed signal
    PCS distance warning displayed signal
    PCS Ped Warning displayed signal
    PCS Preceding Vehicle Start Notification
    Pre-Collision System Alert (w/ Pre-collision System) Displayed Input PCS warning message request signal CAN Drive support control ECU
    PCS Warning distance unusable condition message displayed signal
    PCS Distance Warning displayed signal
    PCS distance warning displayed signal
    PCS Ped Warning displayed signal
    PCS Preceding Vehicle Start Notification
    Start Key System Malfunction See Owner's Manual Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Steering Wheel Lock Press Engine Switch while Turning Wheel Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Depress Brake and Then Touch Key to Engine Switch Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Key Not Detected Check Key Location Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Depress Brake and Then Start Engine Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Key Battery Low Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Turn Off Vehicle. Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Shift to P Before Exiting Vehicle Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Power Turned Off to Save Battery Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Push and Hold Engine Switch for Emergency Stop Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Shift to N and Press Engine Switch to Restart Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Key Left inside Vehicle Displayed Input Smart entry and start system warning signal CAN Certification ECU (Smart key ECU assembly)
    Moon Roof Open Displayed Input Power window open warning signal CAN Main body ECU (multiplex network body ECU)
    Slide roof open warning signal
    Window Open Displayed Input Power window open warning signal CAN Main body ECU (multiplex network body ECU)
    Slide roof open warning signal
    Window / Moon Roof Open Displayed Input Power window open warning signal CAN Main body ECU (multiplex network body ECU)
    Slide roof open warning signal
    Front door LH open Displayed Input Front door courtesy light switch LH signal CAN Main body ECU (multiplex network body ECU)
    Front door RH open Displayed Input Front door courtesy light switch RH signal CAN Main body ECU (multiplex network body ECU)
    Rear door LH open Displayed Input Rear door courtesy light switch LH signal CAN Main body ECU (multiplex network body ECU)
    Rear door RH open Displayed Input Rear door courtesy light switch RH signal CAN Main body ECU (multiplex network body ECU)
    Back door open Displayed Input Back door courtesy light switch signal CAN Main body ECU (multiplex network body ECU)
    Theft Sensor Turned Off Displayed Input Theft sensor status signal CAN Main body ECU (multiplex network body ECU)
    Theft Sensor Turned On Displayed Input Theft sensor status signal CAN Main body ECU (multiplex network body ECU)
    Intuitive parking assist detection Displayed Input Clearance sonar display signal CAN Clearance warning ECU assembly
    Front left area information signal
    Front center area information signal
    Front right area information signal
    Rear left area information signal
    Rear center area information signal
    Rear right area information signal
    Clean Parking Assist Sensor Displayed Input Clearance sonar display signal CAN Clearance warning ECU assembly
    Sensor diagnostic request signal
    Parking Assist Malfunction Displayed Input Clearance sonar display signal CAN Clearance warning ECU assembly
    Sensor diagnostic request signal
    Parking Assist Malfunction Visit Your Dealer Displayed Input Clearance sonar display signal CAN Clearance warning ECU assembly
    Sensor diagnostic request signal
    VGRS TEST MODE Displayed Input VGRS message request signal CAN Steering control ECU
    Check VGRS System Displayed Input VGRS message request signal CAN Steering control ECU
    4-WHEEL AHC TEST MODE Displayed Input AHC Off light request signal CAN 4 wheel drive control ECU
    Check 4-WHEEL AHC System Displayed Input AHC Off light request signal CAN 4 wheel drive control ECU
    Lane Departure Alert Malfunction Visit Your Dealer (w/ Lane Departure Alert System) Displayed Input Malfunction status message displayed signal CAN Forward recognition camera
    Lane Departure Alert Unavailable (w/ Lane Departure Alert System) Displayed Input LDA temporary unusable condition text displayed signal CAN Forward recognition camera
    Lane Departure Alert Unavailable Below Approx 32MPH (w/ Lane Departure Alert System) Displayed Input Speed condition failure text display signal CAN Forward recognition camera
    Lane Departure Alert Unavailable Below Approx 50km/h (w/ Lane Departure Alert System)
    Lane Departure Alert Unavailable at Current Speed (w/ Lane Departure Alert System) Displayed Input Speed condition failure text display signal CAN Forward recognition camera
    ADJUSTING LDA CAMERA (w/ Lane Departure Alert System) Displayed Input Camera adjustment mode text display signal CAN Forward recognition camera
    Would You Like to Take a Rest (w/ Lane Departure Alert System) Displayed Input SWS rest advisory displayed request signal CAN Forward recognition camera
    Please Take a Rest (w/ Lane Departure Alert System) Displayed Input SWS rest advisory displayed request signal CAN Forward recognition camera
    Headlight System Malfunction Visit Your Dealer Displayed Input Headlight leveling warning signal CAN Headlight leveling ECU assembly
    LED head lamp indicator light request signal
    LED head lamp indicator light request signal Main body ECU (multiplex network body ECU)
    Automatic high beam indicator light request signal
    Smart beam indicator light request signal
    To Activate Auto High Beam, Switch Headlights to High Beam Displayed Input Automatic high advise signal CAN Main body ECU (multiplex network body ECU)
    Headlight system Uninitialized Visit your dealer Displayed Input LED head lamp indicator light request signal CAN Headlight leveling ECU assembly
    Turn Assist Function Has Been Deactivated Displayed Input Turn assist message request signal CAN Brake actuator assembly (skid control ECU)
    Turn Assist Function Not Available Check System Operation Conditions Displayed Input Turn assist message request signal CAN Brake actuator assembly (skid control ECU)
    Turn Assist Function Not Available Activate Crawl Control Displayed Input Turn assist message request signal CAN Brake actuator assembly (skid control ECU)
    Release Accelerator Displayed Input GOS message request signal CAN ECM
    Drive-Start Control Malfunction Visit Your Dealer Displayed Input GOS message request signal CAN ECM
    Brake Override Malfunction Visit Your Dealer Displayed Input GOS message request signal CAN ECM
    Accelerator and Brake Pedals Depressed Simultaneously Displayed Input GOS message request signal CAN ECM
    Blind Spot Monitor Unavailable (w/ Blind Spot Monitor System) Displayed Input BSD module status signal CAN Blind spot monitor sensor LH
    Blind Spot Monitor System Malfunction Visit Your Dealer (w/ Blind Spot Monitor System) Displayed Input BSD module status signal CAN Blind spot monitor sensor LH
    Transmission Fluid Temp High See Owner's Manual Displayed Input AT oil temperature warning signal CAN ECM
    Check Transmission System Displayed Input AT oil temperature warning signal CAN ECM
    Turn Lights Off Displayed Input Front door courtesy light switch LH signal CAN Main body ECU (multiplex network body ECU)
    Key switch signal
    Lighting system state signal
    Check Engine Visit Your Dealer Displayed Input MIL (malfunction indicator lamp) request signal CAN ECM
    Engine control status signal
    Check Engine Reduced Engine Power Visit Your Dealer Displayed Input MIL (malfunction indicator lamp) request signal CAN ECM
    Engine control status signal
    Reduced Engine Power Visit Your Dealer Displayed Input MIL (malfunction indicator lamp) request signal CAN ECM
    Engine control status signal
    Engine Maintenance required Visit Your Dealer Displayed Input MIL (malfunction indicator lamp) request signal CAN ECM
    Engine control status signal
    Maintenance request signal
    Engine Oil Level Low Add or Replace Displayed Input Engine speed signal CAN ECM
    4LO indicator light control signal 4 wheel drive control ECU
    Engine oil level sensor signal Direct line Oil level sensor assembly
    Windshield Washer Fluid Low Displayed Input Washer fluid low level signal Direct line Level warning switch assembly
    Check Fuel System Displayed Input Fuel level signal Direct line Fuel sender gauge assembly
    Fuel Low Displayed Input Fuel level signal Direct line Fuel sender gauge assembly
    Shift position indicator Displayed Input Shift position P signal CAN ECM
    Shift position R signal
    Shift position N signal
    Shift position D signal
    Shift gear signal
    Mode indicator signal
    Sports mode enable signal
    TM oil temperature range signal
    Eco driving indicator zone Displayed Input ECO-zone indicator level signal CAN ECM
    Vehicle speed (digital display) Displayed Input Vehicle speed signal CAN Brake actuator assembly (skid control ECU)
    Steering angle Displayed Input Steering signal CAN Steering sensor
    Steering control ECU
    Tire pressure Displayed Input Tire pressure information signal CAN Tire pressure warning ECU and receiver
    Sway Warning Displayed Input SWS rest advisory displayed request signal CAN Forward recognition camera
    VSC system check Displayed Input VSC warning light signal CAN Brake actuator assembly (skid control ECU)
    VSC test mode
    VSC OFF
    MULTI-TERRAIN SELECT Displayed Input Multi-display message request signal CAN Brake actuator assembly (skid control ECU)
    Oil Maintenance Required Soon Displayed Input Oil maintenance mileage signal CAN ECM
    Oil Maintenance Required Visit Your Dealer Displayed Input Oil maintenance mileage signal CAN ECM
    Maintenance Required Soon Displayed Input Vehicle speed pulse input signal CAN Brake actuator assembly (skid control ECU)
    Maintenance Required Visit Your Dealer Displayed Input Vehicle speed pulse input signal CAN Brake actuator assembly (skid control ECU)
scientia non olet · About LEMON Manuals
