Parts Location [08/2015 - ]: Illustration

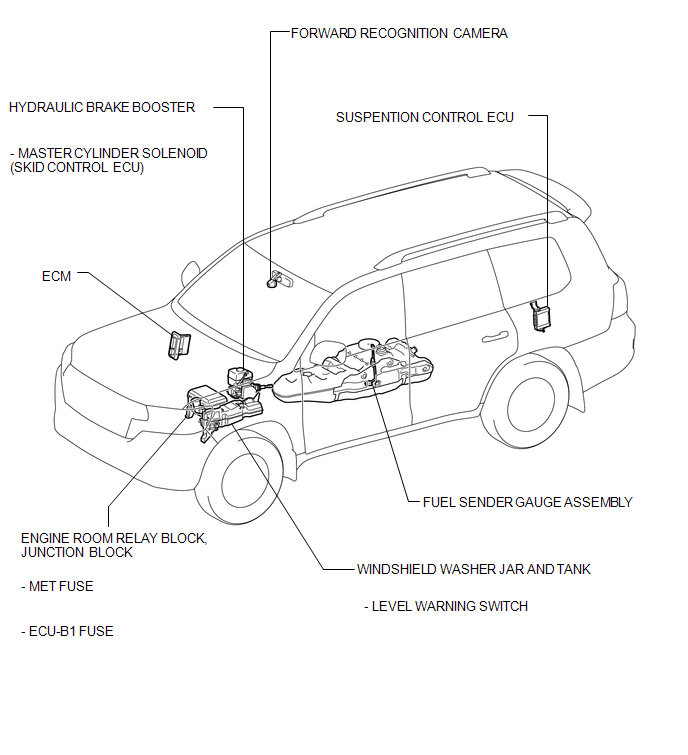

GTY596759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

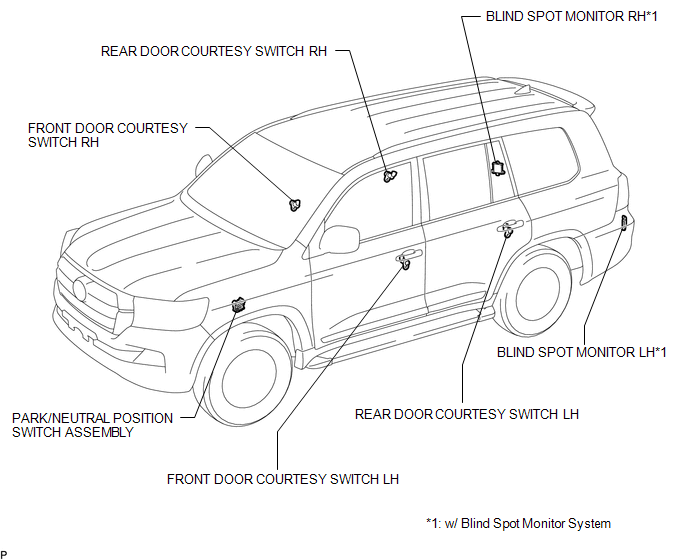

GTY547763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

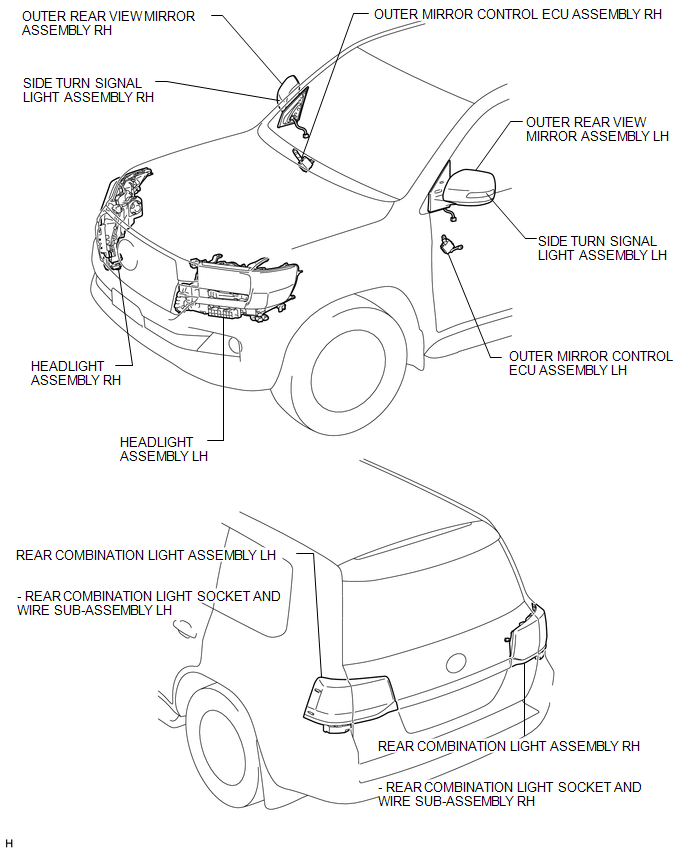

GTY574938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

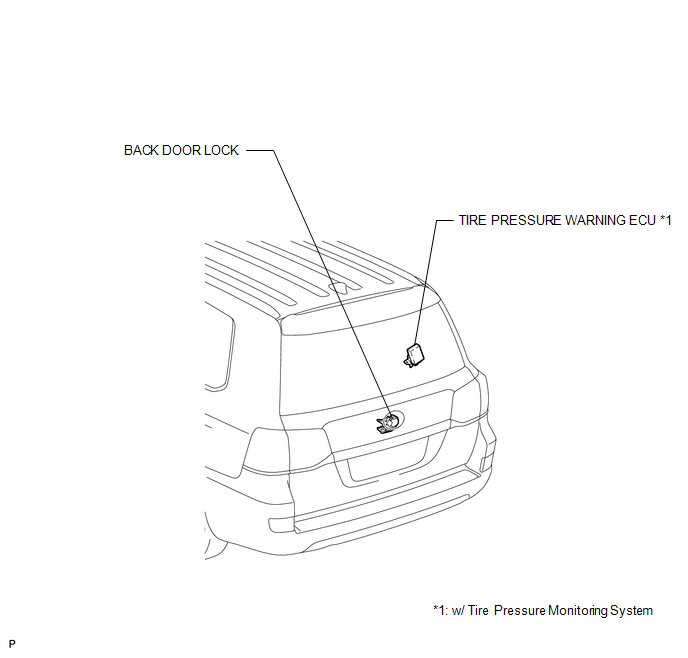

GTY591292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

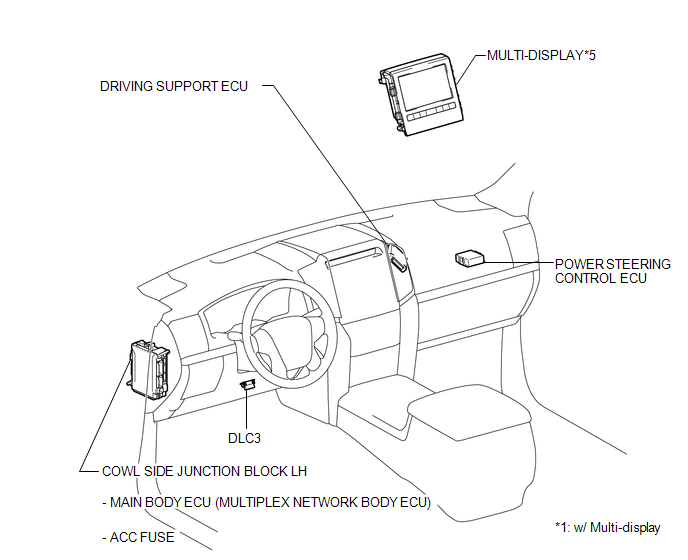

GTY570708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

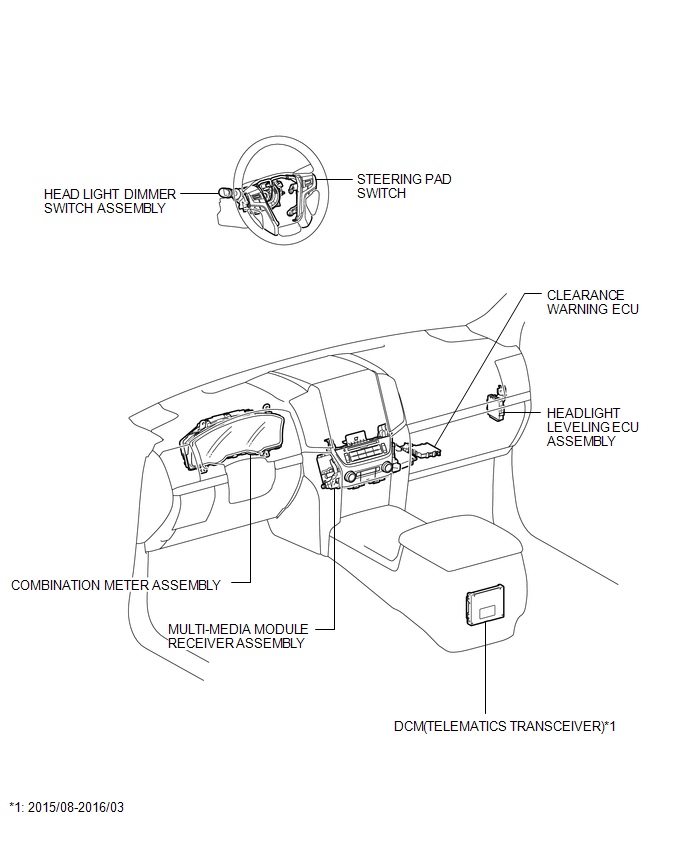

GTY692057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

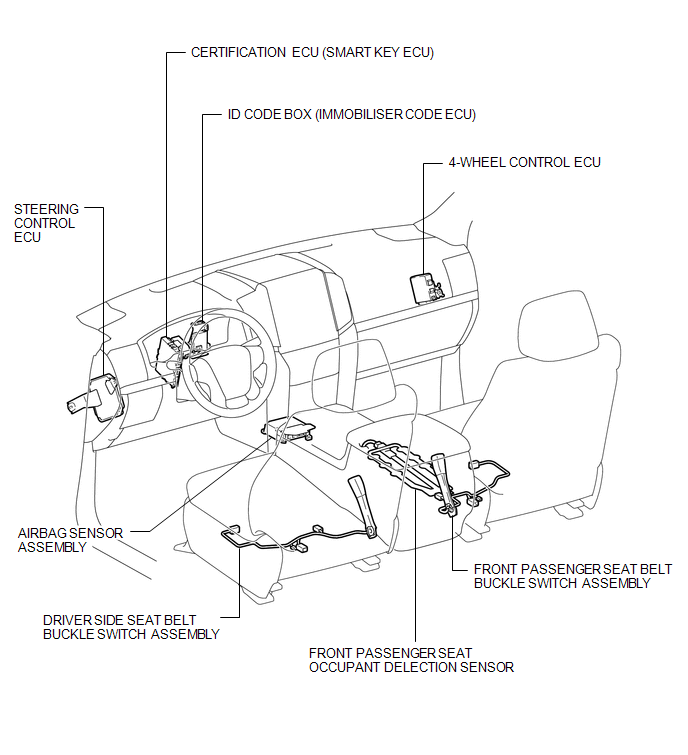

GTY550957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

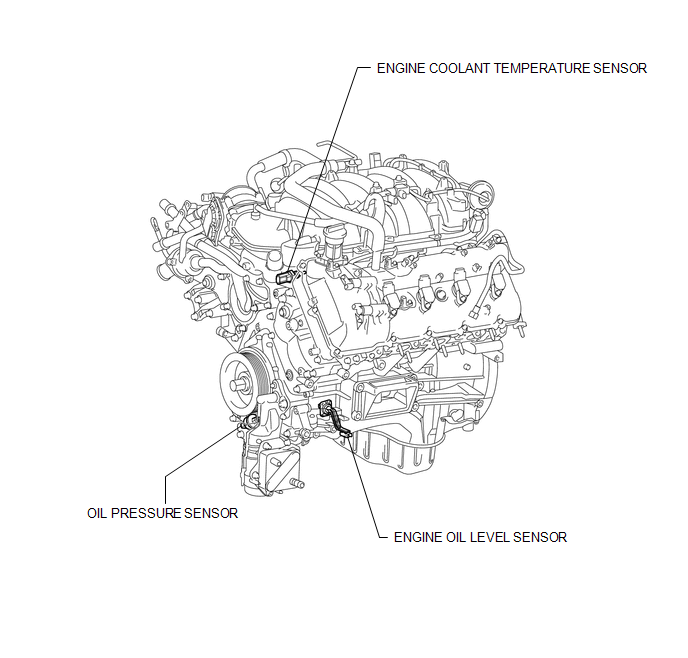

GTY606978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
