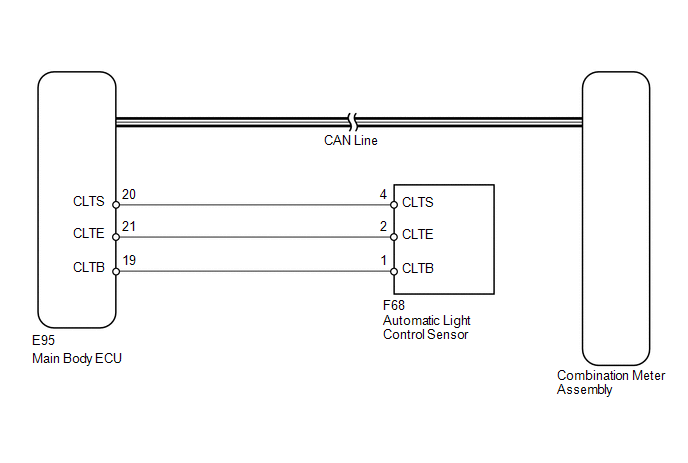

Meter Illumination is Always Dark [08/2015 - ]: Wiring Diagram

GTY545606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
