DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [08/2015 - ]: Wiring Diagram

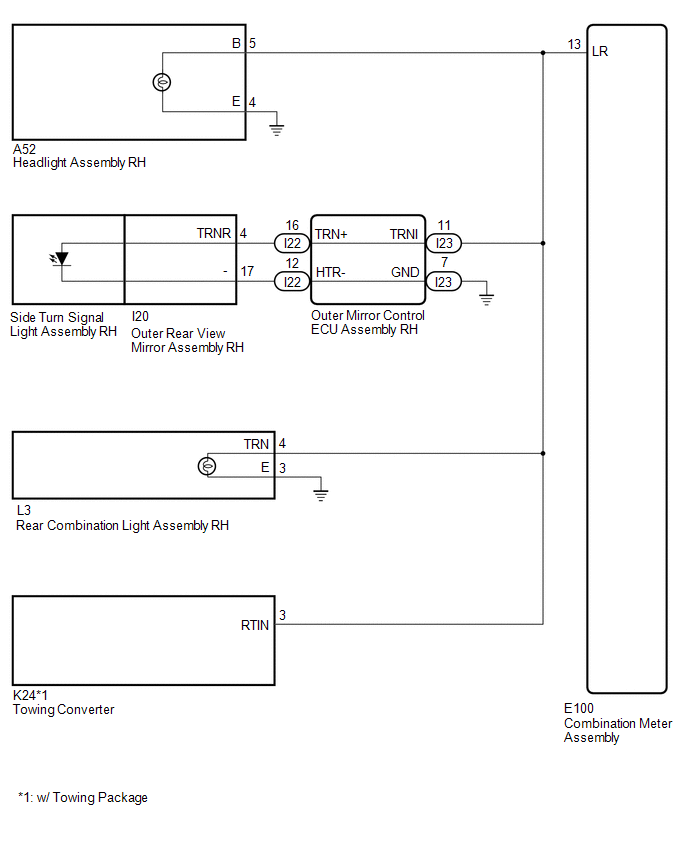

  1. RH Side
    GTY596218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

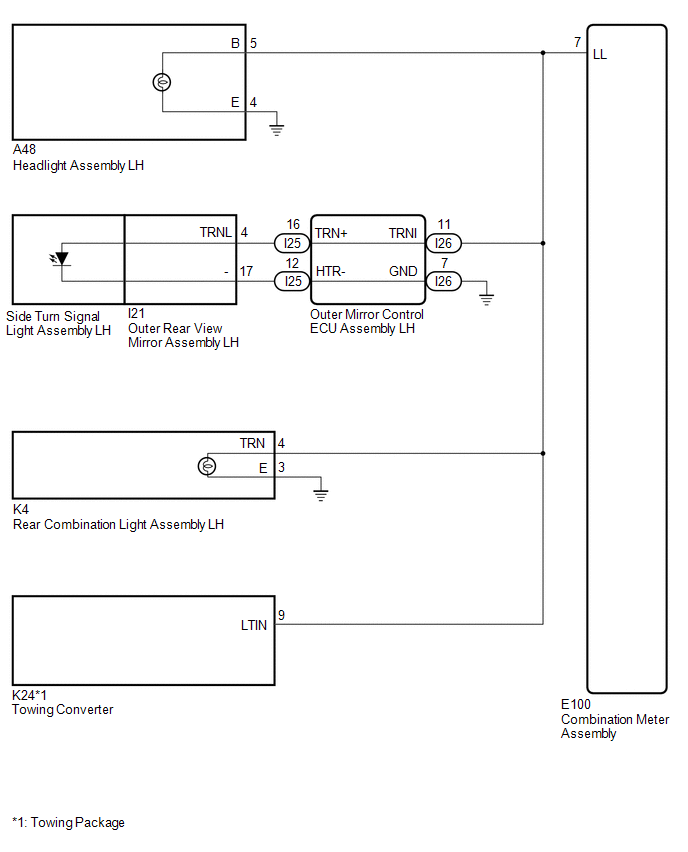

  2. LH Side
    GTY610415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
