Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

      Refer to BEFORE DISCONNECTING BATTERY [09/2021 - 11/2022]

    • When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

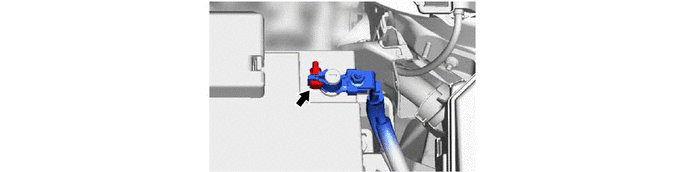

    1. GTY1030065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FUSIBLE LINK COVER

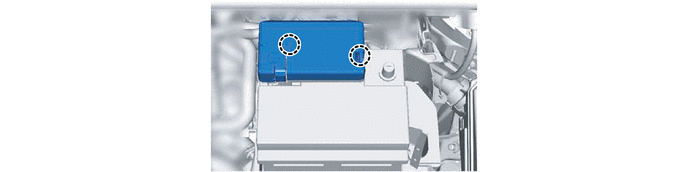

    1. GTY1029787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT POSITIVE AUXILIARY BATTERY TERMINAL

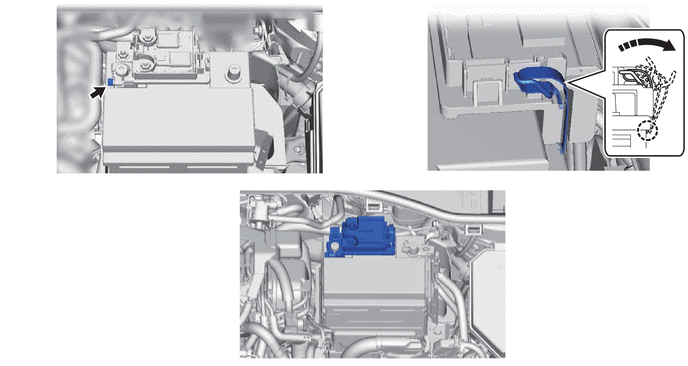

    1. GTY1029786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 BATTERY CLAMP

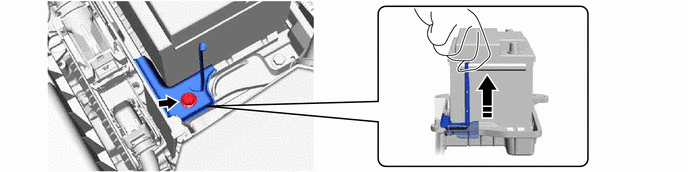

    1. GTY1029354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AUXILIARY BATTERY

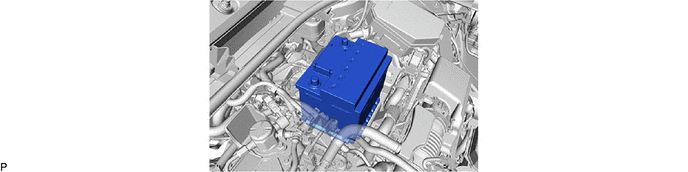

    1. GTY1029699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
