Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY

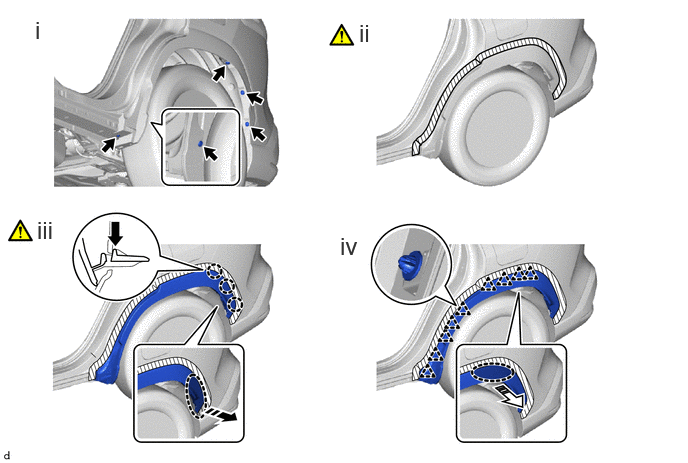

    1. GTY1032538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Place Hand Here
      Remove in this Direction (1) Remove in this Direction (2)
      1. Remove the 4 clips and screw.
      2. Apply protective tape around the quarter outside moulding sub-assembly as shown in the illustration.
      3. Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.
        NOTE:

        To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly.

      4. Disengage the clips to remove the quarter outside moulding sub-assembly as shown in the illustration.
