Reassembly [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 2 BODY OUTSIDE MOULDING PAD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When installing a new No. 2 body outside moulding pad, heat the quarter outside moulding using a heat light.

    Standard

    Item Temperature
    Quarter Outside Moulding 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the quarter outside moulding excessively.

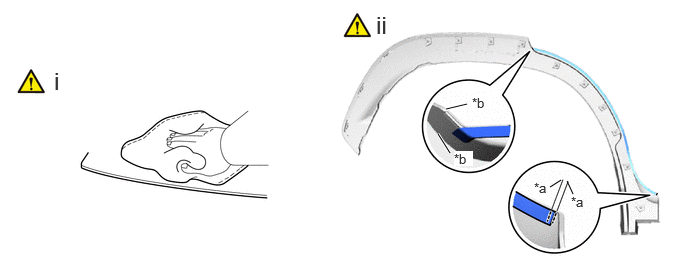

    1. GTY1031934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Line *b End of R
      1. Clean the quarter outside moulding.

        1. Using a heat light, heat the quarter outside moulding surface.

        2. Remove any remaining double-sided tape from the quarter outside moulding.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the No. 2 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 2 body outside moulding pad.

        1. Using a heat light, heat the quarter outside moulding.

        2. Remove the release paper from the No. 2 body outside moulding pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 2 body outside moulding pad as shown in the illustration.

        HINT:

        • Make sure that the end of the No. 2 body outside moulding pad is between the location lines.
        • Make sure that the end of the No. 2 body outside moulding pad is between the end of R.
        • Press the No. 2 body outside moulding pad firmly to install it.
  2. INSTALL NO. 1 BODY OUTSIDE MOULDING PAD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When installing a new No. 1 body outside moulding pad, heat the quarter outside moulding using a heat light.

    Standard

    Item Temperature
    Quarter Outside Moulding 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the quarter outside moulding excessively.

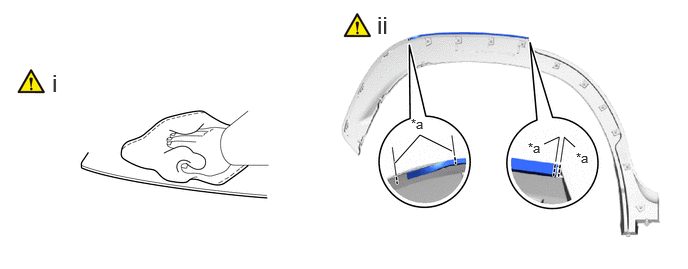

    1. GTY1031399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Line - -
      1. Clean the quarter outside moulding.

        1. Using a heat light, heat the quarter outside moulding surface.

        2. Remove any remaining double-sided tape from the quarter outside moulding.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the No. 1 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 1 body outside moulding pad.

        1. Using a heat light, heat the quarter outside moulding.

        2. Remove the release paper from the No. 1 body outside moulding pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 1 body outside moulding pad as shown in the illustration.

        HINT:

        • Make sure that the end of the No. 1 body outside moulding pad is between the location lines.
        • Press the No. 1 body outside moulding pad firmly to install it.
