  1. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY

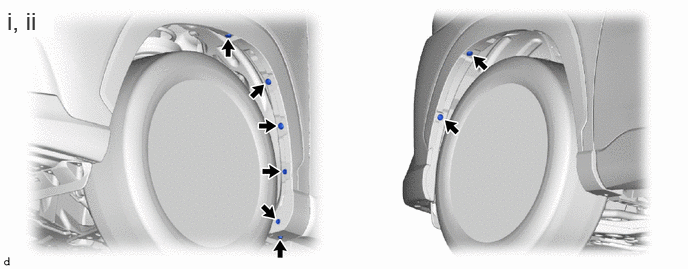

    1. GTY1031013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the screw.
      2. Remove the 5 clips and 2 grommets.

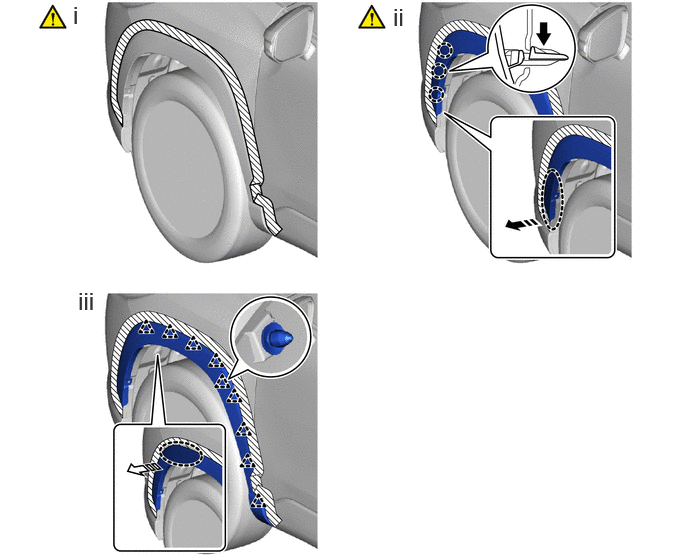

    2. GTY1031082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Place Hand Here
      Remove in this Direction (1) Remove in this Direction (2)
      1. Apply protective tape around the front fender moulding sub-assembly as shown in the illustration.
      2. Pull back the edge of the front fender liner and disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.
        NOTE:
        • Do not apply excessive force when pulling back the front fender liner.
        • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly.
      3. Disengage the clips to remove the front fender moulding sub-assembly as shown in the illustration.
