Reassembly [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 5 FRONT WHEEL OPENING EXTENSION PAD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When installing a new No. 5 front wheel opening extension pad, heat the front fender moulding using a heat light.

    Standard

    Item Temperature
    Front Fender Moulding 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front fender moulding excessively.

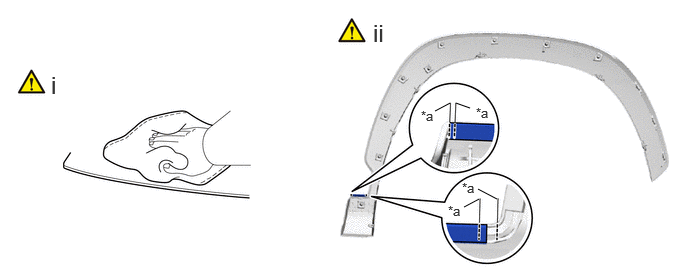

    1. GTY1031824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Line - -
      1. Clean the front fender moulding.

        1. Using a heat light, heat the front fender moulding surface.

        2. Remove any remaining double-sided tape from the front fender moulding.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the No. 5 front wheel opening extension pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 5 front wheel opening extension pad.

        1. Using a heat light, heat the front fender moulding.

        2. Remove the release paper from the No. 5 front wheel opening extension pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 5 front wheel opening extension pad as shown in the illustration.

        HINT:

        • Make sure that the end of the No. 5 front wheel opening extension pad is between the location lines.
        • Press the No. 5 front wheel opening extension pad firmly to install it.
  2. INSTALL NO. 3 FRONT WHEEL OPENING EXTENSION PAD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When installing a new No. 3 front wheel opening extension pad, heat the front fender moulding using a heat light.

    Standard

    Item Temperature
    Front Fender Moulding 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front fender moulding excessively.

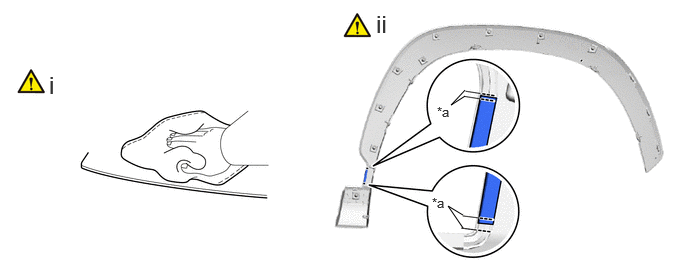

    1. GTY1031796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Line - -
      1. Clean the front fender moulding.

        1. Using a heat light, heat the front fender moulding surface.

        2. Remove any remaining double-sided tape from the front fender moulding.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the No. 3 front wheel opening extension pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 3 front wheel opening extension pad.

        1. Using a heat light, heat the front fender moulding.

        2. Remove the release paper from the No. 3 front wheel opening extension pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 3 front wheel opening extension pad as shown in the illustration.

        HINT:

        • Make sure that the end of the No. 3 front wheel opening extension pad is between the location lines.
        • Press the No. 3 front wheel opening extension pad firmly to install it.
  3. INSTALL NO. 4 FRONT WHEEL OPENING EXTENSION PAD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When installing a new No. 4 front wheel opening extension pad, heat the front fender moulding using a heat light.

    Standard

    Item Temperature
    Front Fender Moulding 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front fender moulding excessively.

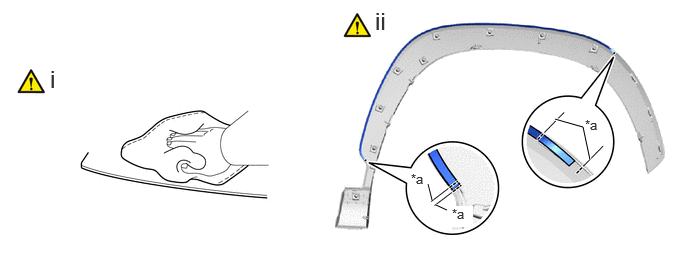

    1. GTY1030843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Line - -
      1. Clean the front fender moulding.

        1. Using a heat light, heat the front fender moulding surface.

        2. Remove any remaining double-sided tape from the front fender moulding.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the No. 4 front wheel opening extension pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      2. Install a new No. 4 front wheel opening extension pad.

        1. Using a heat light, heat the front fender moulding.

        2. Remove the release paper from the No. 4 front wheel opening extension pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 4 front wheel opening extension pad as shown in the illustration.

        HINT:

        • Make sure that the end of the No. 4 front wheel opening extension pad is between the location lines.
        • Press the No. 4 front wheel opening extension pad firmly to install it.
