Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

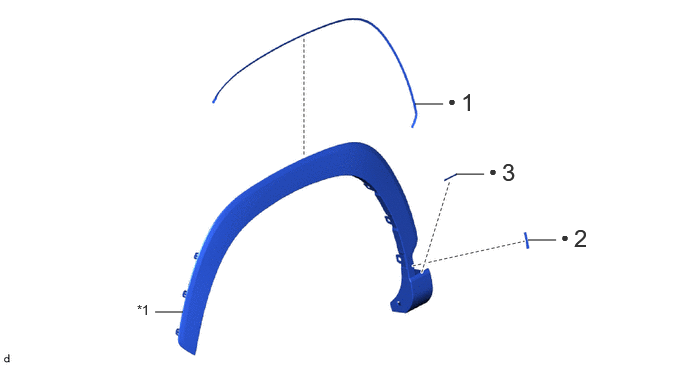

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 4 FRONT WHEEL OPENING EXTENSION PAD | 53854 | - | - | - |
| 2 | NO. 3 FRONT WHEEL OPENING EXTENSION PAD | 53853 | - | - | - |
| 3 | NO. 5 FRONT WHEEL OPENING EXTENSION PAD | 53855B | - | - | - |
| *1 | FRONT FENDER MOULDING | - | - |
| • | Non-reusable part | - | - |
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
