Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  2. REMOVE ROOF RACK ASSEMBLY

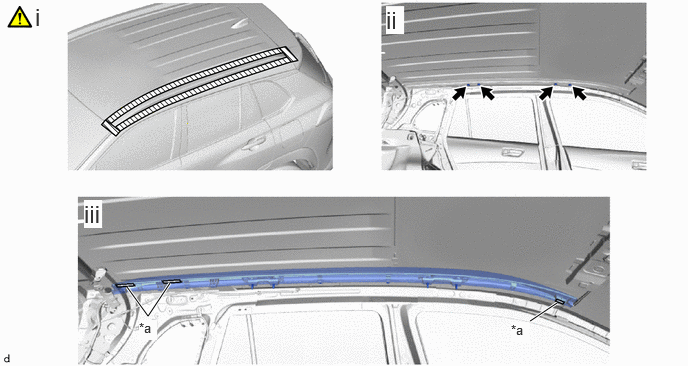

    1. GTY1178132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
      1. Apply protective tape around the roof rack assembly.
      2. Remove the 4 nuts.
      3. Separate the double-sided tape to remove the roof rack assembly.
