Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [09/2021 - 11/2022]

  2. REMOVE ROOF RACK ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When removing the roof rack assembly, if the double-sided tape is difficult to remove, heat the vehicle body and roof rack assembly using a heat light.

    Standard

    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Roof Rack Assembly 20 to 30 °C (68 to 86 °F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the vehicle body and roof rack assembly.

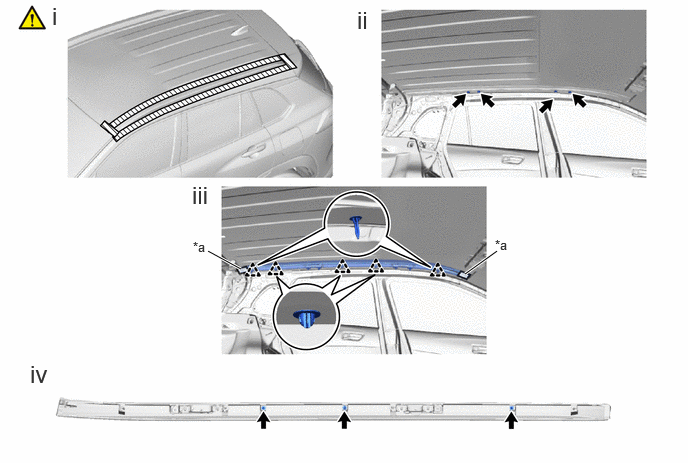

    1. GTY1031182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
      1. Apply protective tape around the roof rack assembly.
      2. Remove the 4 nuts.
      3. Disengage the clips and separate the double-sided tape to remove the roof rack assembly.
      4. Remove the 3 clips.
