Installation [11/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL ROOF RACK ASSEMBLY
-

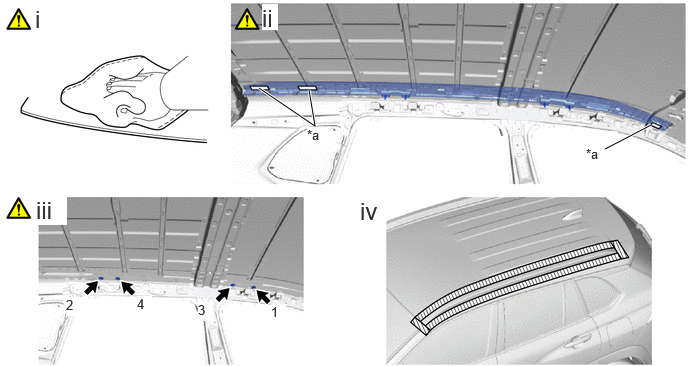

*a Double-sided Tape - - - Clean the vehicle body.
1. Using a heat light, heat the vehicle body.
Standard
Item Temperature Item Temperature Vehicle Body 40 to 60°C (104 to 140°F) - - WARNING:NOTE:Do not heat the vehicle body excessively.
2. Remove any remaining double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the roof rack assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Install the roof rack assembly.
1. Using a heat light, heat the vehicle body.
Standard
Item Temperature Item Temperature Vehicle Body 40 to 60°C (104 to 140°F) - - WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
NOTE:Do not heat the vehicle body excessively.
2. Remove the release papers from the roof rack assembly.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Install the roof rack assembly.
HINT:
Press the roof rack assembly firmly to install it.
- Install the 4 nuts in the order shown in the illustration.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
- Remove the protective tape.
- Clean the vehicle body.
-
- INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION [11/2022 - ]
