Disassembly [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ROOF SIDE GARNISH LID
    1. GTY1031733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  2. REMOVE NO. 2 ROOF SIDE GARNISH LID
    1. GTY1031417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  3. REMOVE FRONT ROOF RACK LEG
    1. GTY1031609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ROOF RACK LEG
    1. GTY1031614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT ROOF DRIP SIDE FINISH MOULDING SEAL
    1. GTY1178109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING SEAL
    1. GTY1178108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

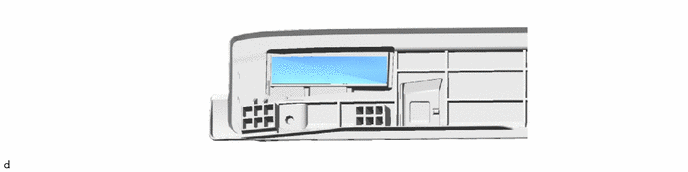

  7. REMOVE NO. 3 ROOF DRIP SIDE FINISH MOULDING SEAL
    1. GTY1177740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
