Disassembly [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT ROOF RACK RETAINER

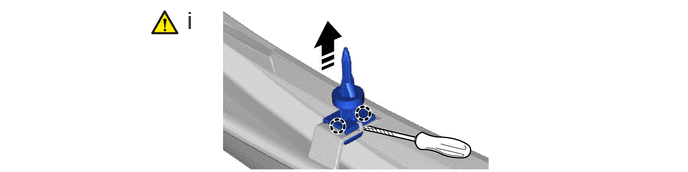

    1. GTY1031819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the craws to remove the front roof rack retainer as shown in the illustration.
  2. REMOVE REAR ROOF RACK RETAINER

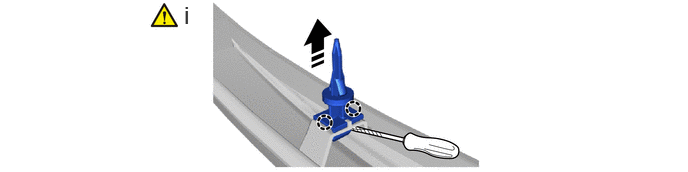

    1. GTY1030831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the craws to remove the rear roof rack retainer as shown in the illustration.
  3. REMOVE NO. 1 ROOF SIDE GARNISH LID
    1. GTY1031733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE NO. 2 ROOF SIDE GARNISH LID
    1. GTY1031417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  5. REMOVE FRONT ROOF RACK LEG SUB-ASSEMBLY

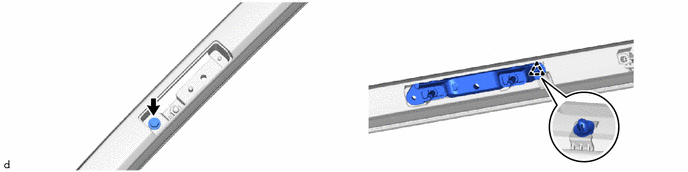

    1. GTY1031609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR ROOF RACK LEG SUB-ASSEMBLY

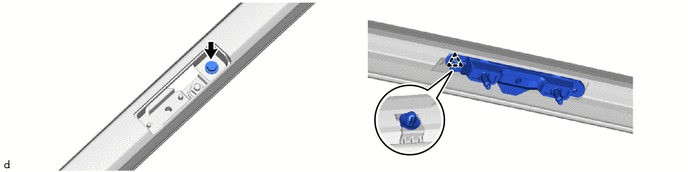

    1. GTY1031614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
