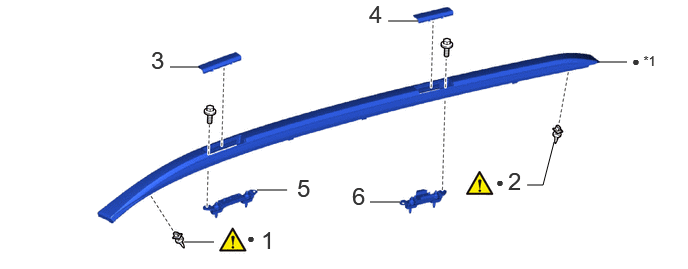

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT ROOF RACK RETAINER | 63453F | See step 1 | - | - |
| 2 | REAR ROOF RACK RETAINER | 63454F | See step 2 | - | - |
| 3 | NO. 1 ROOF SIDE GARNISH LID | 75632A | - | - | - |
| 4 | NO. 2 ROOF SIDE GARNISH LID | 75634 | - | - | - |
| 5 | FRONT ROOF RACK LEG SUB-ASSEMBLY | - | - | - | - |
| 6 | REAR ROOF RACK LEG SUB-ASSEMBLY | - | - | - | - |
| *1 | ROOF RACK | - | - |
| • | Non-reusable part | - | - |
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
