Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING

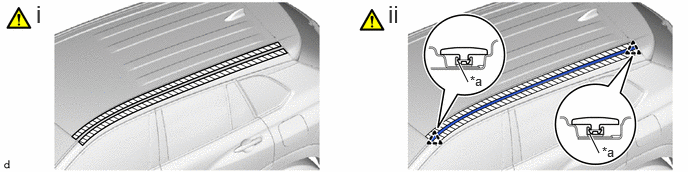

    1. GTY1030873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ROOF DRIP SIDE FINISH MOULDING CRIP - -
      1. Apply protective tape around the center roof drip side finish moulding as shown in the illustration.
      2. Disengage the clips to remove the center roof drip side finish moulding.
        NOTE:
        • Do not remove the roof drip side finish moulding clips.
        • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
